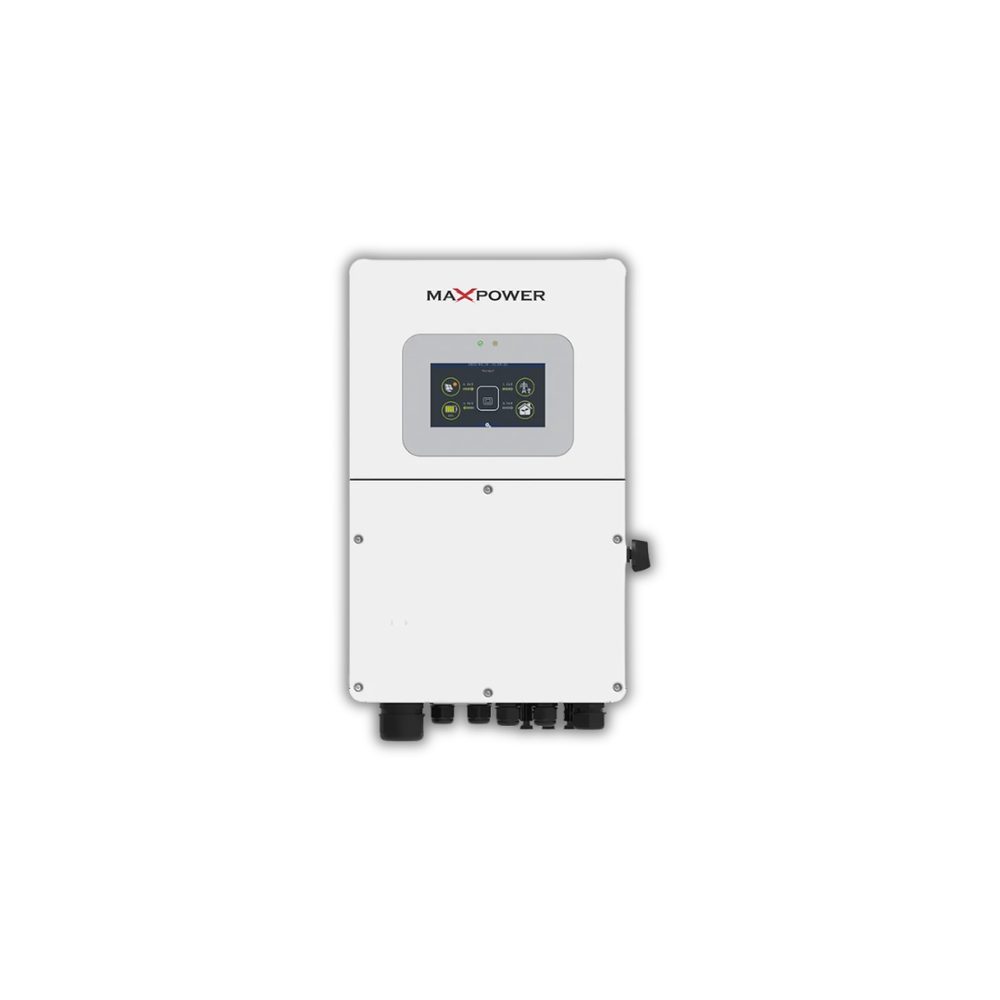

MaxPower Voltas HYD 8K-H6 Pro 8kW Hybrid Solar Inverter – 4 MPPT

The MaxPower Voltas HYD 8K-H6 Pro 8kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and commercial solar systems. With an 8kW rated AC output and up to 12,000W DC/PV input, it provides efficient solar energy conversion and reliable power management.

Featuring 4 independent MPPT trackers, each supporting one string, the inverter offers flexible solar panel configuration. Its 90–500V MPPT operating range and 600V maximum DC input voltage help optimize solar generation across different installation conditions.

The Voltas HYD 8K-H6 Pro supports both Lead-Acid and Li-ion batteries with a 40–60V battery voltage range. It provides up to 160A maximum charge and discharge current and uses a 3-stage charging strategy for efficient battery management and improved battery care.

With a rated AC output of 8,000W and peak off-grid power of up to 9,000W for 10 seconds, the inverter is suitable for applications requiring reliable backup and higher startup power. It also supports single-source output, including solar-only operation, providing flexibility for different energy system configurations.

Key Features

• 8kW Rated AC Output
• 12,000W Maximum DC/PV Input
• 600V Maximum DC Input Voltage
• 90–500V MPPT Operating Range
• 4 Independent MPPT Trackers
• 1 String per MPPT
• 20A × 4 MPPT Maximum Current
• 100V Startup Voltage
• Compatible with Lead-Acid & Li-ion Batteries
• 40–60V Battery Voltage Range
• Up to 160A Charge & Discharge Current
• 3-Stage Battery Charging
• Up to 9kW Peak Power for 10 Seconds
• Single-Phase Design
• Solar-Only / Single-Source Output Supported
• Suitable for Residential & Commercial Applications
