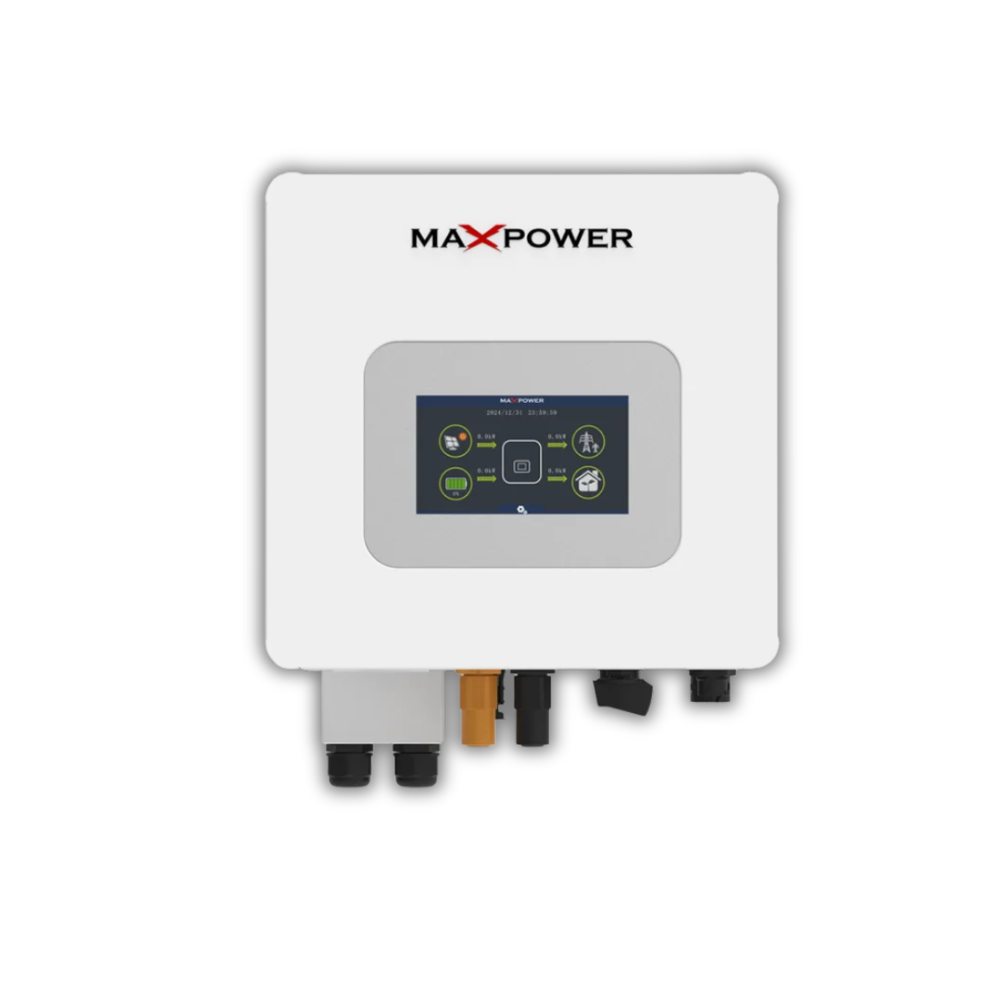

MaxPower Voltas HYD 6K-H6 6kW Hybrid Solar Inverter – 9kW PV, 48V

The MaxPower Voltas HYD 6K-H6 Single Phase Hybrid Solar Inverter is a high-performance energy management solution designed for residential and commercial solar systems. It combines efficient solar power conversion with advanced battery charging and discharging capabilities, helping users maximize solar energy utilization and maintain reliable backup power.

The inverter supports up to 9000W maximum DC/PV input power, with a 550V maximum DC input voltage and a wide 90–500VDC MPPT working range. Equipped with two independent MPPT trackers, each supporting up to 15A, it helps optimize solar generation from different panel configurations.

The Voltas HYD 6K-H6 is compatible with both lead-acid and Li-ion batteries, operating within a 40–60V battery voltage range. It supports up to 140A battery charging and discharging current and features a 3-stage charging curve for efficient battery management. An optional external temperature sensor can further optimize battery charging according to temperature conditions.

With a 6000W rated AC output and 7200W peak output, this single-phase inverter provides dependable power for a wide range of applications. It also supports single-source output, such as solar-only operation, offering greater flexibility for customized energy systems.

Key Specifications
