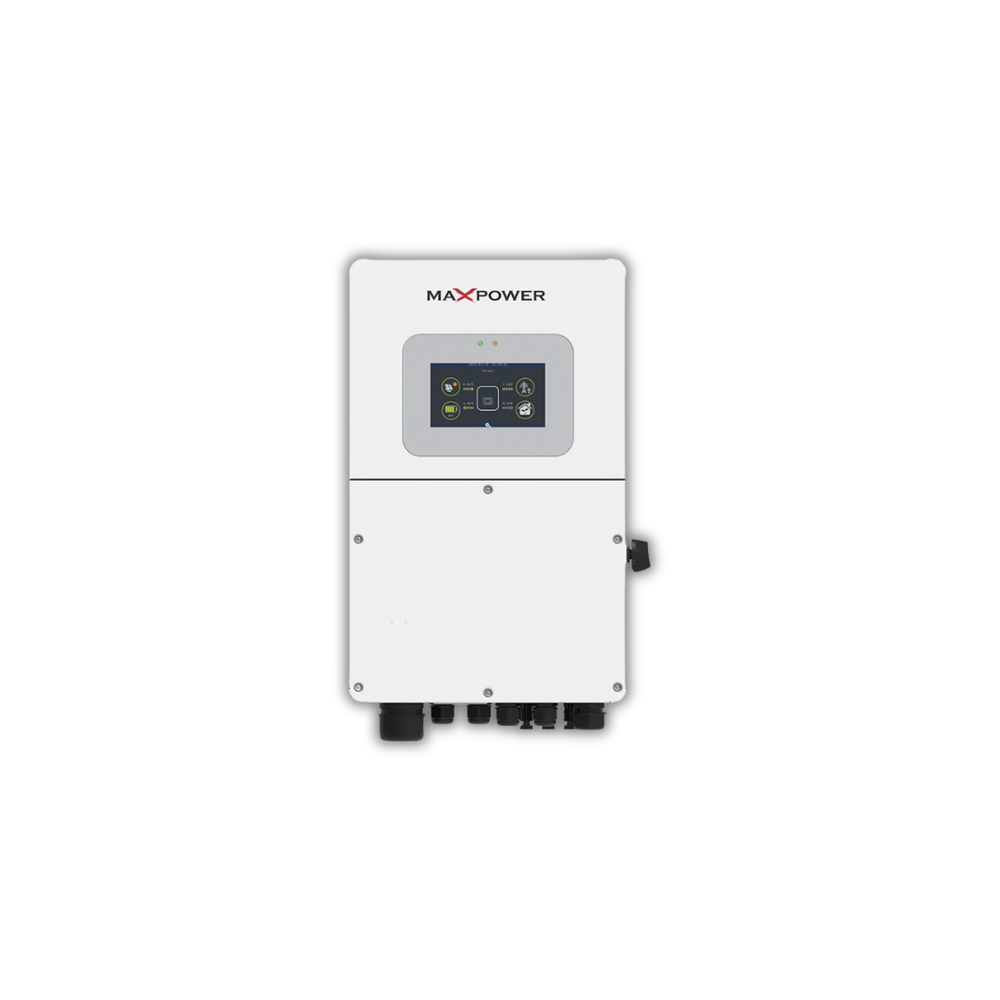

MaxPower Voltas HYD 20K-H6 20kW 3-Phase Hybrid Solar Inverter

Description

The MaxPower Voltas HYD 20K-H6 20kW 3-Phase Hybrid Solar Inverter is a high-performance energy solution designed for commercial, industrial, and large residential solar systems. With a 20kW rated output and up to 40kW maximum DC/PV input power, it efficiently manages solar generation, battery storage, grid power, and backup energy.

The inverter features a wide 180–850V MPPT voltage range and supports up to 1000V DC input voltage, making it suitable for high-capacity solar panel installations. Its 2 independent MPPT trackers with 2 strings per MPPT provide greater flexibility when designing large solar arrays.

The HYD 20K-H6 supports Li-ion and Lead-acid batteries with a 40–60V battery voltage range and provides up to 400A charging/discharging current. Its advanced battery management and self-adaptive BMS compatibility help deliver efficient and reliable energy storage.

With a 20kW nominal output, 22kVA maximum output apparent power, 98% maximum efficiency, and IP66 protection, this three-phase hybrid inverter is built for dependable operation in demanding environments. It also includes WiFi, 4G, USB, CAN, and RS485 communication for convenient monitoring and system management.

Key Features

• 20kW Rated Output Power
• 40kW Maximum PV/DC Input Power
• 1000V Maximum DC Input Voltage
• 180–850V MPPT Voltage Range
• 2 Independent MPPT Trackers
• 2 Strings per MPPT
• 36A × 2 Maximum MPPT Current
• 40–60V Battery Voltage Range
• Compatible with Li-ion & Lead-acid Batteries
• 400A Maximum Charging/Discharging Current
• 22kVA Maximum Output Apparent Power
• 98% Maximum Efficiency
• Three-Phase Hybrid Operation
• IP66 Protection
• Smart Cooling
• WiFi / 4G / USB / CAN / RS485 Communication
• <10ms Automatic Backup Switching
• Suitable for Commercial, Industrial & Large Residential Systems

Specifications
