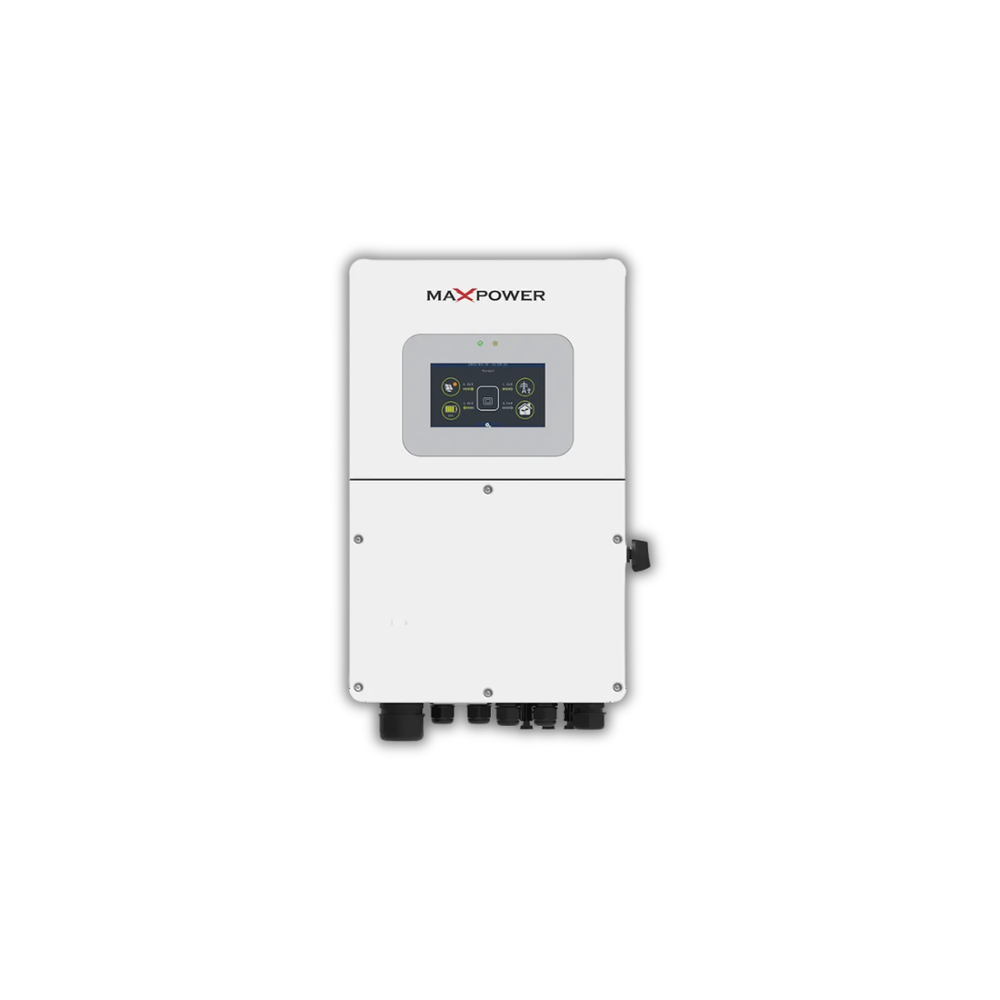

MaxPower Voltas HYD 12K-H6 12kW Hybrid Solar Inverter – 4 MPPT
Solar inverter

MaxPower Voltas HYD 12K-H6 12kW Hybrid Solar Inverter – 4 MPPT

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.420,000.00
Description The MaxPower Voltas HYD 12K-H6 12kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and commercial solar systems. With a 12kW rated output and support for up to 18,000W DC/PV input, it provides efficient solar energy conversion and...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The MaxPower Voltas HYD 12K-H6 12kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and commercial solar systems. With a 12kW rated output and support for up to 18,000W DC/PV input, it provides efficient solar energy conversion and reliable power management.

The inverter features 4 independent MPPT trackers, each supporting one string, with a wide 90–500V MPPT operating range and 600V maximum DC input voltage. This allows flexible solar panel configuration while helping maximize solar energy generation.

The Voltas HYD 12K-H6 supports Li-ion and Lead-acid batteries with a 40–60V battery voltage range. Its maximum 250A charge and discharge current enables high-capacity energy storage and efficient battery management. The built-in 3-stage charging strategy helps provide controlled and efficient battery charging.

Designed for flexible energy management, the inverter supports single-source output, including solar-only operation, making it suitable for a variety of solar power applications.

Key Features

  • 12kW Rated AC Output
  • 18,000W Maximum DC/PV Input
  • 600V Maximum DC Input Voltage
  • 90–500V MPPT Operating Range
  • 4 Independent MPPT Trackers
  • 1 String per MPPT
  • 20A × 4 MPPT Maximum Current
  • 100V Startup Voltage
  • Compatible with Li-ion & Lead-acid Batteries
  • 40–60V Battery Voltage Range
  • Up to 250A Charge & Discharge Current
  • 3-Stage Battery Charging
  • Single-Phase Design
  • Solar-Only / Single-Source Output Supported
  • Suitable for Residential & Commercial Applications

Specifications

Specification Details
Brand MaxPower Voltas
Model HYD 12K-H6
Phase Single Phase
Rated Output Power 12kW
Maximum DC Input Power 18,000W
Maximum DC Input Voltage 600V
MPPT Working Voltage Range 90–500V
Number of Independent MPPTs 4
Strings per MPPT 1
Maximum MPPT Current 20A × 4
Startup Voltage 100V
Battery Type Li-ion & Lead-acid
Battery Voltage Range 40–60V
Maximum Charge Current 250A
Maximum Discharge Current 250A
Charging Strategy 3-Stage Charging Curve
Output Configuration Single-Source / Solar-Only Supported
Application Residential & Commercial Solar Systems
