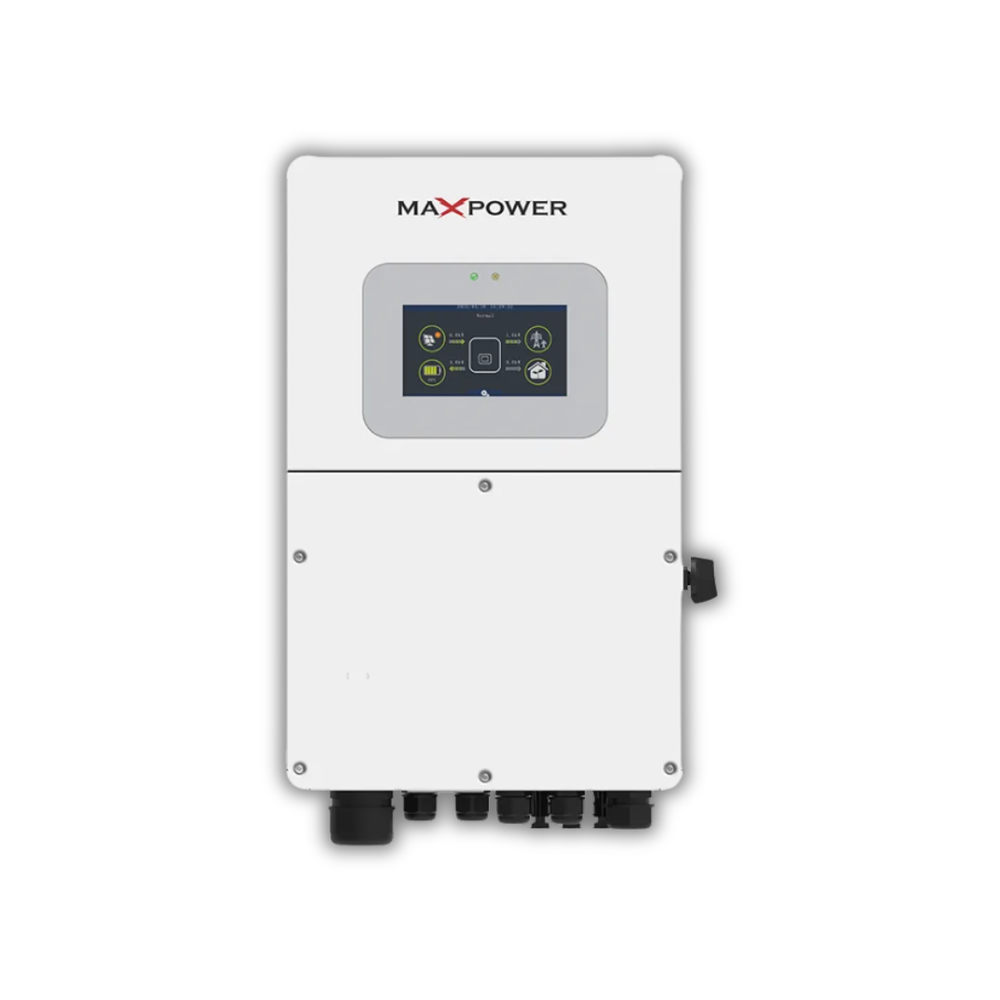

MaxPower Voltas HYD 10K-H6 Pro 10kW Hybrid Solar Inverter – 4 MPPT

Description

The MaxPower Voltas HYD 10K-H6 Pro 10kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and commercial solar systems. With a 10kW rated AC output and support for up to 15,000W DC solar input, it is built to efficiently manage high-capacity solar installations.

The inverter features 4 independent MPPT trackers, each supporting one string, with an MPPT operating voltage range of 90–500V and a maximum DC input voltage of 600V. This multi-MPPT design provides greater flexibility for solar panel configurations and helps optimize energy generation.

The Voltas HYD 10K-H6 Pro supports both lead-acid and Li-ion batteries with a 40–60V battery voltage range. It offers up to 200A maximum charge and discharge current, along with a 3-stage charging strategy for efficient battery management.

Designed for flexible solar applications, the inverter supports single-source output operation, including solar-only output, while offering reliable energy management for on-grid and off-grid setups. It can deliver up to 11kVA peak power for 10 seconds in off-grid operation, making it suitable for handling higher startup loads.

Key Features

• 10kW Rated AC Output
• 15,000W Maximum DC/PV Input
• 600V Maximum DC Input Voltage
• 90–500V MPPT Operating Range
• 4 Independent MPPT Trackers
• 1 String per MPPT
• 20A × 4 MPPT Maximum Current
• 100V Startup Voltage
• Compatible with Lead-Acid & Li-ion Batteries
• 40–60V Battery Voltage Range
• Up to 200A Charge & Discharge Current
• 3-Stage Battery Charging
• Up to 11kVA Peak Power for 10 Seconds
• Single-Phase Design
• Supports Solar-Only / Single-Source Output

Specifications
