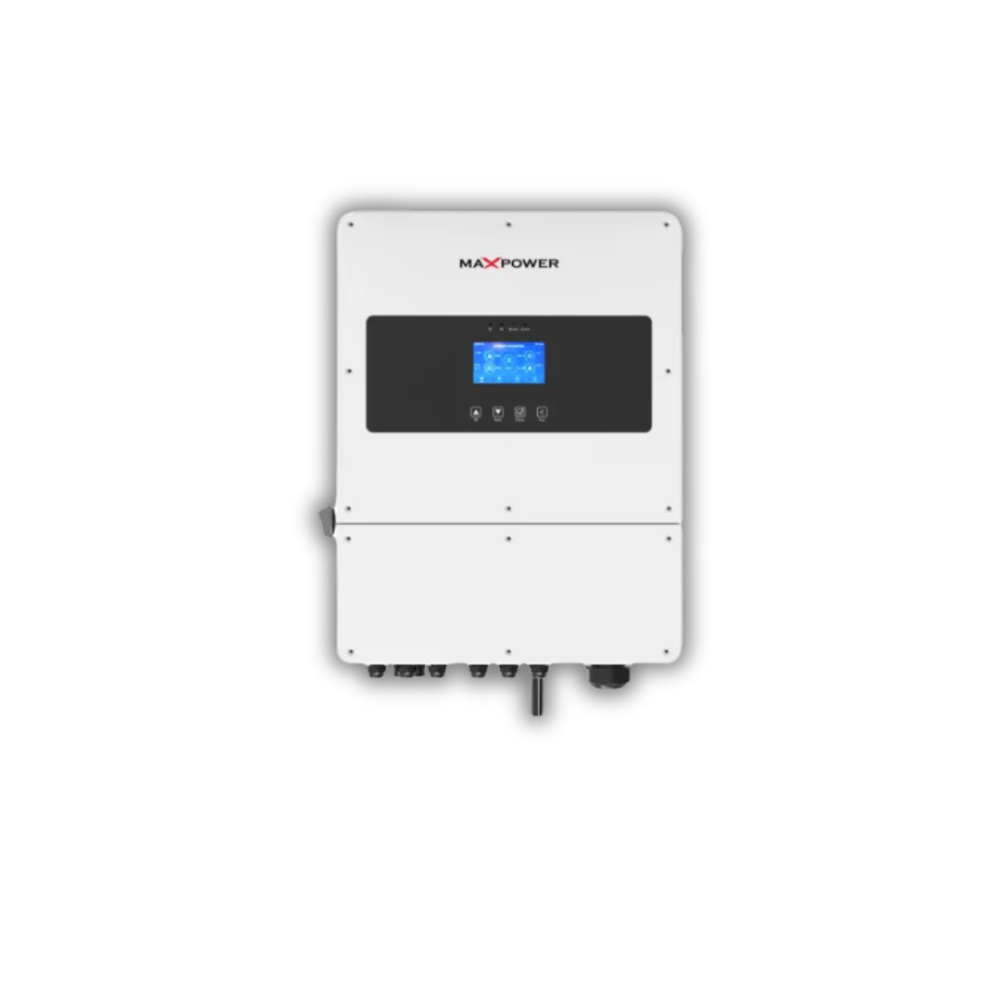

MaxPower Voltas 8K-H4 8kW Single-Phase Hybrid Solar Inverter

Description

The MaxPower Voltas 8K-H4 8kW Single-Phase Hybrid Solar Inverter is a high-performance solution designed for residential and commercial solar systems. It efficiently combines solar power generation, battery storage, and grid energy management to maximize energy savings and provide reliable backup power.

With a 12,000W maximum DC/PV input power and a wide 150–425V MPPT voltage range, the Voltas 8K-H4 is designed to efficiently harvest solar energy from high-capacity PV arrays. It features 2 MPPT trackers, providing greater flexibility in solar panel configuration.

The inverter delivers 8,000W rated AC output power and up to 9,600W maximum AC output power, making it suitable for demanding household and commercial loads. It supports both Li-ion and Lead-acid batteries with a 40–60V battery voltage range and provides up to 140A charge and discharge current.

For intelligent energy management, the Voltas 8K-H4 includes built-in Zero Export and Load Monitoring functions. Integrated PV ARC fault detection and output overvoltage protection enhance system safety, while its 97.90% maximum efficiency helps minimize energy losses.

With IP65 protection and a 5-year warranty, the Voltas 8K-H4 offers reliable and durable performance for modern solar energy systems.

Key Features

• 8kW Rated AC Output Power
• 9.6kW Maximum AC Output Power
• 12,000W Maximum DC/PV Input
• 370V PV Input Voltage
• 125–500V PV Input Voltage Range
• 150–425V MPPT Voltage Range
• 2 MPPT Trackers
• Compatible with Li-ion & Lead-acid Batteries
• 40–60V Battery Voltage Range
• 140A Maximum Charge & Discharge Current
• Built-in Zero Export Function
• Built-in Load Monitoring
• 3-Stage Battery Charging
• PV ARC Fault Detection
• Output Overvoltage Protection
• 97.90% Maximum Efficiency
• IP65 Protection
• 5-Year Warranty

Specifications
