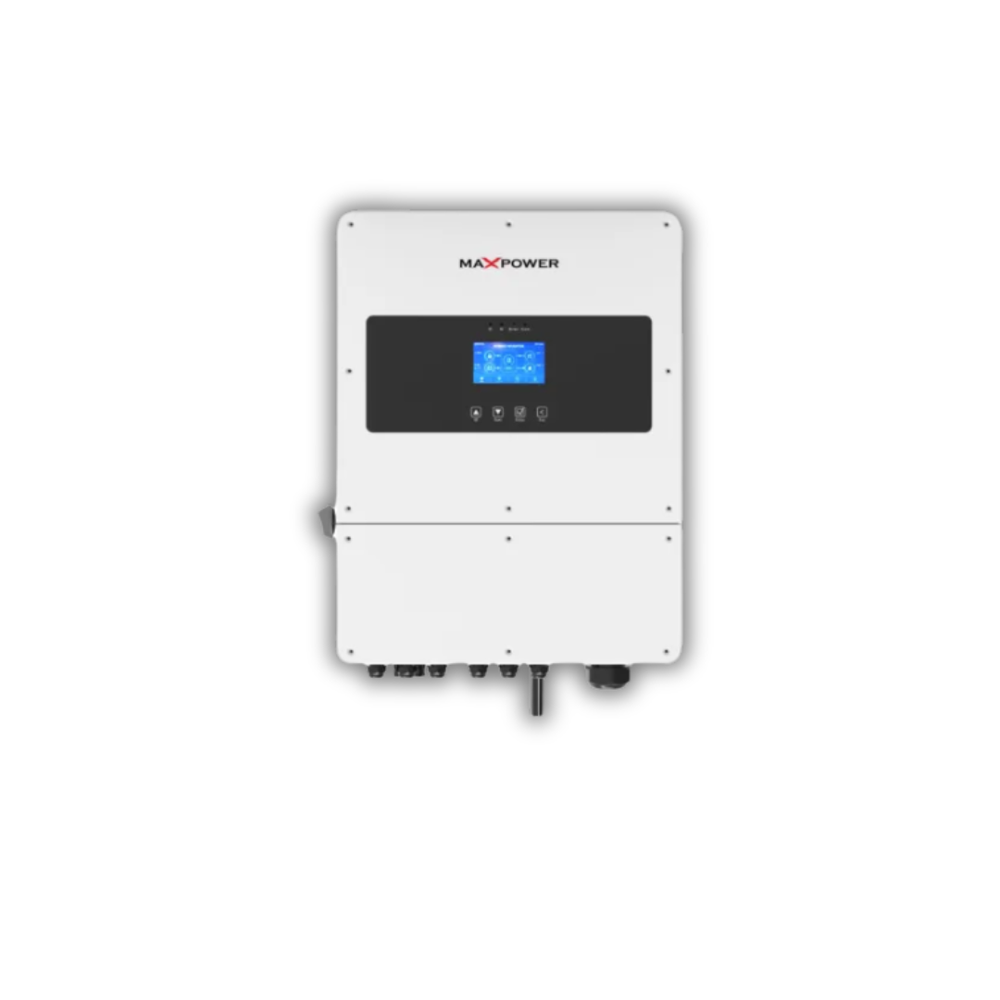

MaxPower Voltas 6K-H4 6kW Single-Phase Hybrid Solar Inverter

Description

The MaxPower Voltas 6K-H4 6kW Single-Phase Hybrid Solar Inverter is a high-efficiency solar energy solution designed for residential and commercial applications. It combines solar power generation and battery storage with intelligent energy management to maximize solar utilization and provide reliable backup power.

With a 9,000W maximum PV input power and a 150–425V MPPT voltage range, the Voltas 6K-H4 efficiently manages high-capacity solar arrays. Its 2 MPPT trackers provide flexibility for different panel configurations and help optimize solar energy harvesting.

The inverter delivers 6,000W rated AC output power and up to 7,200W maximum AC output power, making it suitable for a wide range of household and commercial electrical loads. It supports both Li-ion and Lead-acid batteries with a 40–60V battery voltage range and up to 140A charge and discharge current.

Built-in Zero Export and Load Monitoring functions provide better control over energy usage. Advanced safety features including PV ARC fault detection and output overvoltage protection enhance system reliability, while the 97.90% maximum efficiency helps reduce energy losses.

Key Features

• 6kW Rated AC Output Power
• 7.2kW Maximum AC Output Power
• 9,000W Maximum PV Input Power
• 370V PV Input Voltage
• 125–500V PV Input Voltage Range
• 150–425V MPPT Voltage Range
• 2 MPPT Trackers
• Compatible with Li-ion & Lead-acid Batteries
• 40–60V Battery Voltage Range
• 140A Maximum Charge & Discharge Current
• Built-in Zero Export Function
• Built-in Load Monitoring
• 3-Stage Battery Charging
• PV ARC Fault Detection
• Output Overvoltage Protection
• 97.90% Maximum Efficiency
• 5-Year Warranty

Specifications
