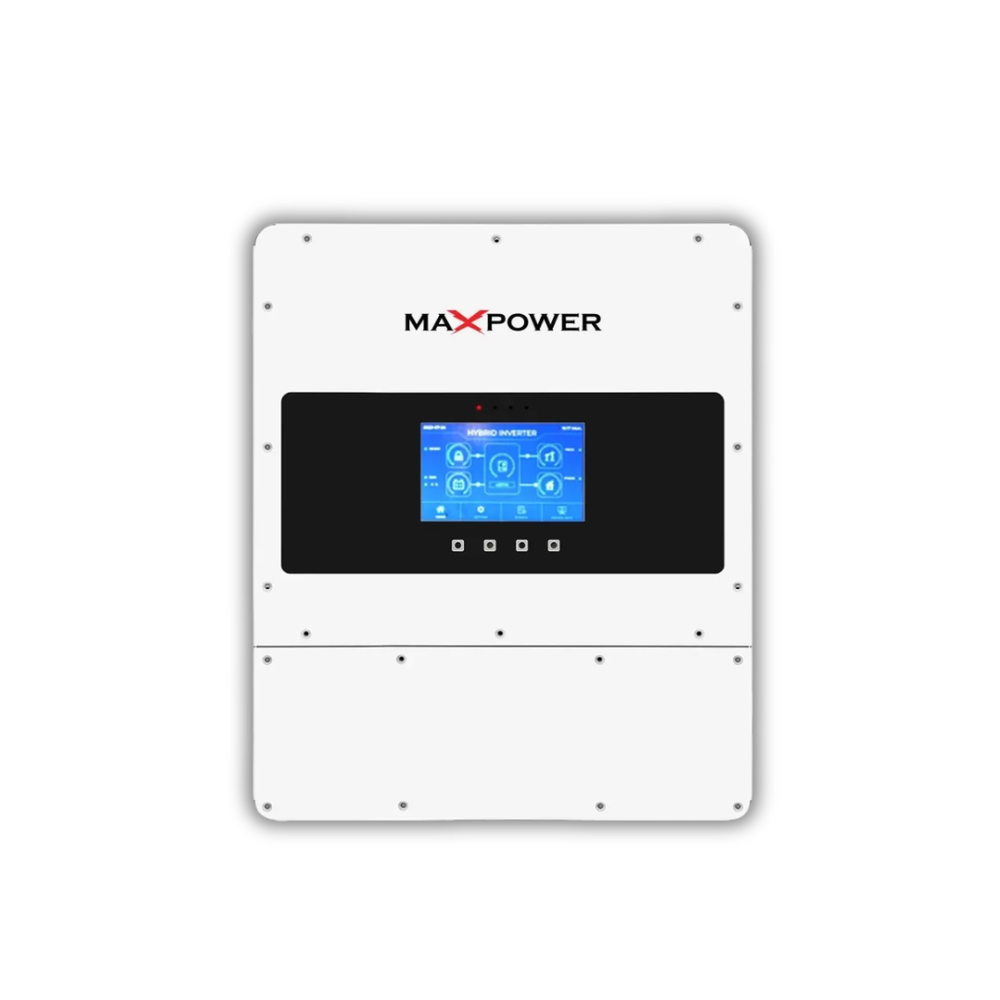

MaxPower Voltas 14K-H4 14kW 3-Phase Hybrid Solar Inverter

Description

The MaxPower Voltas 14K-H4 14kW 3-Phase Hybrid Solar Inverter is a high-performance energy solution designed for commercial and industrial solar systems. It combines advanced solar power management, battery storage, and intelligent energy control to deliver reliable and efficient power for demanding applications.

With up to 20,000W maximum PV input power, a 650V PV input voltage with a 160–800V operating range, and a wide 200–700V MPPT range, the Voltas 14K-H4 efficiently manages high-capacity solar arrays. Its 2 MPPT trackers provide flexible PV system configuration and improved solar energy harvesting.

The inverter supports both Li-ion and Lead-acid batteries with a 40–60V battery voltage range, along with 250A maximum charge and discharge current. Its 3-stage charging strategy helps optimize battery performance and charging efficiency.

For intelligent energy management, the Voltas 14K-H4 includes built-in Zero Export and Load Monitoring functions. Advanced protection features, including PV arc fault detection and output overvoltage protection, provide enhanced system safety.

With up to 97.90% maximum efficiency, IP65 protection, and a 5-year warranty, the Voltas 14K-H4 is built for reliable long-term performance in commercial and industrial solar applications.

Key Features

• 14kW Three-Phase Hybrid Solar Inverter
• 20,000W Maximum PV Input Power
• 650V PV Input Voltage
• 160–800V PV Input Voltage Range
• 200–700V MPPT Voltage Range
• 160V Startup Voltage
• 2 MPPT Trackers
• Compatible with Li-ion & Lead-acid Batteries
• 40–60V Battery Voltage Range
• 250A Maximum Charge Current
• 250A Maximum Discharge Current
• Built-in Zero Export Function
• Built-in Load Monitoring
• 3-Stage Battery Charging
• PV Arc Fault Detection
• Output Overvoltage Protection
• 97.90% Maximum Efficiency
• IP65 Protection
• 5-Year Warranty

Specifications
