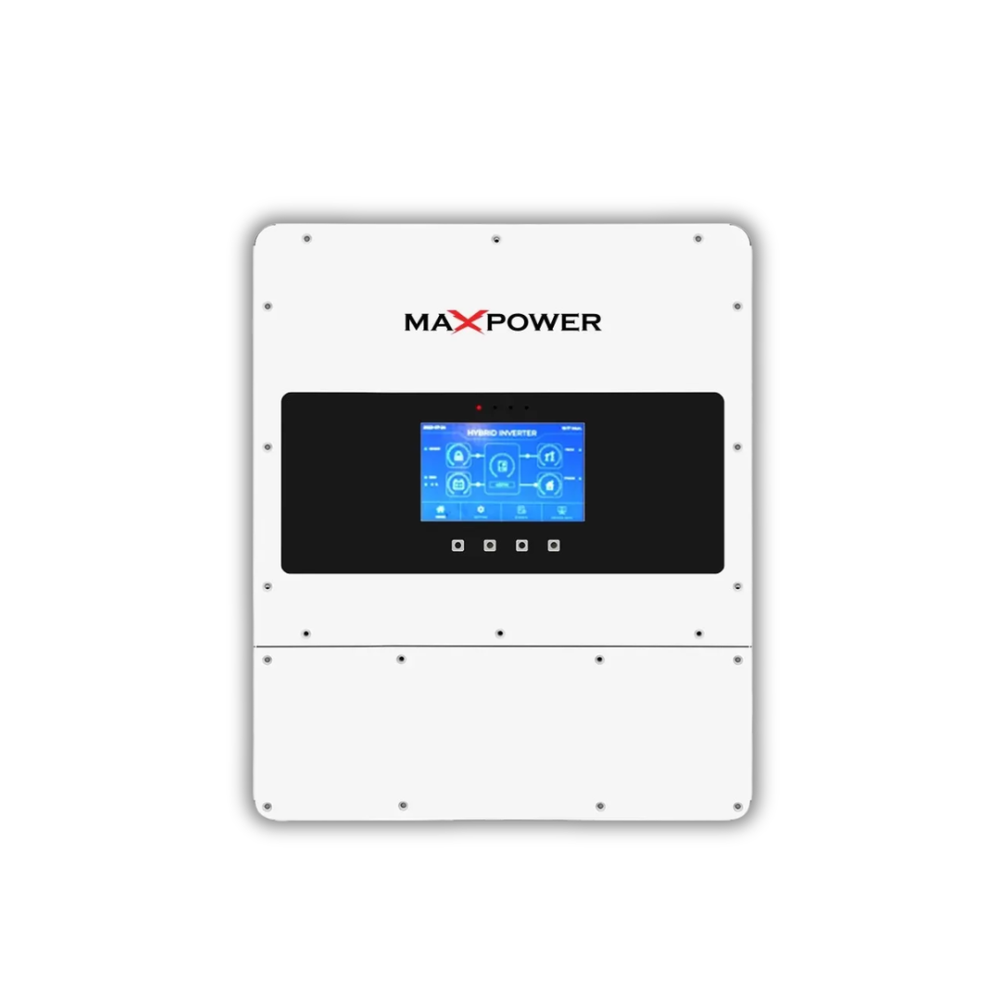

MaxPower Voltas 12K-H4 12kW 3-Phase Hybrid Solar Inverter

Description

The MaxPower Voltas 12K-H4 12kW 3-Phase Hybrid Solar Inverter is a high-performance energy solution designed for residential and commercial solar systems. With support for both on-grid and off-grid operation, it efficiently manages solar power, battery storage, and electrical loads to maximize energy savings and provide reliable backup power.

The inverter supports up to 18,000W maximum DC/PV input power and features a wide 200–700V MPPT operating range, allowing efficient solar energy harvesting from high-capacity PV systems. With 2 MPPT trackers and a 650V PV input voltage, it provides flexible solar array configuration.

The Voltas 12K-H4 is compatible with Lead-acid and Li-ion batteries, supporting a 40–60V battery voltage range and up to 250A charging and discharging current. It can support a battery bank of up to 75kWh, making it suitable for applications requiring substantial energy storage.

Built-in Zero Export and Load Monitoring functions provide intelligent energy management, while the colorful touch LCD offers convenient system monitoring and control. With IP65 protection and a 5-year warranty, the Voltas 12K-H4 is built for dependable long-term performance.

Key Features

• 12kW Three-Phase Hybrid Inverter
• 18,000W Maximum DC/PV Input
• 650V Maximum PV Input Voltage
• 200–700V MPPT Voltage Range
• 160V Startup Voltage
• 2 MPPT Trackers
• Compatible with Li-ion & Lead-acid Batteries
• 40–60V Battery Voltage Range
• 250A Maximum Charge & Discharge Current
• Supports up to 75kWh Battery Bank
• Built-in Zero Export Function
• Built-in Load Monitoring Function
• 3-Stage Battery Charging
• Colorful Touch LCD Display
• IP65 Protection
• 5-Year Warranty
• Suitable for Residential & Commercial Applications
