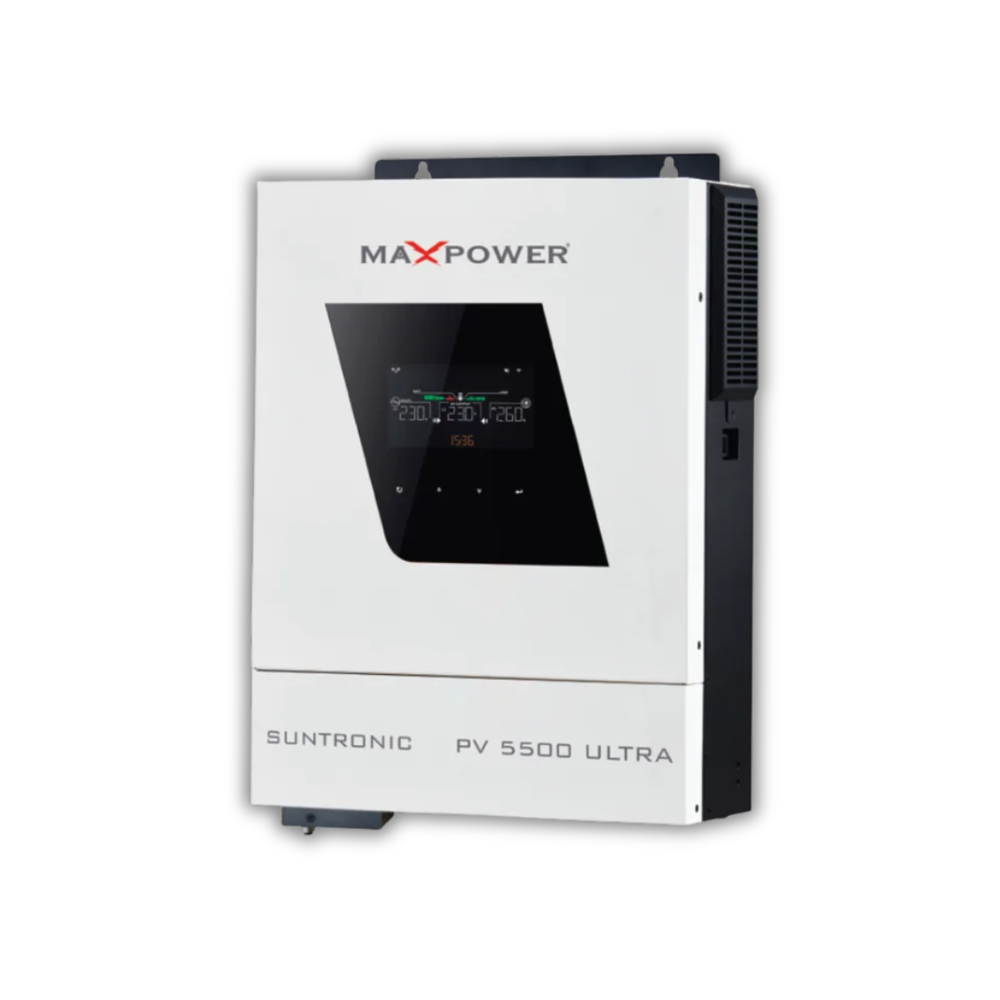

MaxPower Suntronic PV 5500 Ultra 4kW Solar Inverter – 24V, 5600W PV
Solar inverter

MaxPower Suntronic PV 5500 Ultra 4kW Solar Inverter – 24V, 5600W PV

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.0.00
Product Description The MaxPower Suntronic PV 5500 Ultra 4kW Solar Inverter is a high-performance solar power solution designed for reliable residential and commercial backup applications. With a 4000W / 4000VA rated output, pure sine wave power, and up to 93% peak efficiency,...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Product Description

The MaxPower Suntronic PV 5500 Ultra 4kW Solar Inverter is a high-performance solar power solution designed for reliable residential and commercial backup applications. With a 4000W / 4000VA rated output, pure sine wave power, and up to 93% peak efficiency, it provides stable and efficient energy for homes, offices, and sensitive electronic equipment.

The inverter supports a wide 90–280VAC input range for home appliances and 170–280VAC for computers, with automatic 50/60Hz frequency adjustment. Its pure sine wave output provides 230VAC ±10% regulated voltage, while the powerful 8000VA surge capacity handles high-startup loads effectively.

The integrated MPPT solar charger supports up to 5600W PV array power, with a wide 60–450VDC MPPT range and 40A maximum PV input current. It provides up to 120A solar charging and 100A AC charging, making it suitable for flexible hybrid solar power systems.

Designed around a 24VDC battery system, the PV 5500 Ultra includes 27V float charging and 33V overcharge protection to support safe and reliable battery operation. With fast 10ms transfer time for PCs and 20ms for home appliances, it ensures smooth switching between power sources.

Key Specifications

Specification Details
Model Suntronic PV 5500 Ultra
Rated Power 4000VA / 4000W
Output Voltage 230VAC ±10%
Surge Power 8000VA
Peak Efficiency 90–93%
Battery Voltage 24VDC
AC Input – Computers 170–280VAC
AC Input – Home Appliances 90–280VAC
Frequency Auto-sensing 50/60Hz
Output Waveform Pure Sine Wave
Transfer Time – PC 10ms
Transfer Time – Appliances 20ms
Maximum PV Array Power 5600W
MPPT Voltage Range 60–450VDC
Maximum PV Input Current 40A
Maximum Solar Charging Current 120A
Maximum AC Charging Current 100A
Float Charging Voltage 27V
Overcharge Protection 33V
Warranty 3 Years
