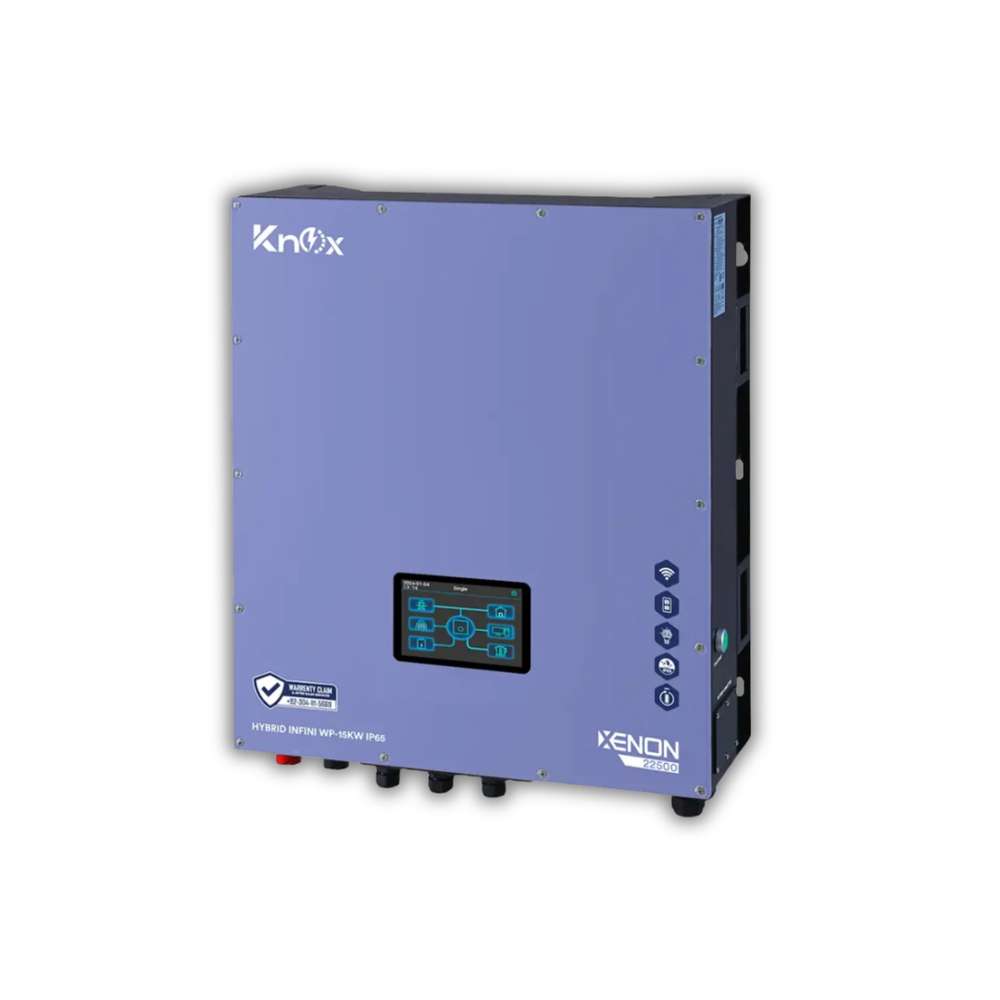

KNOX Xenon 22500 15kW 3-Phase Hybrid Solar Inverter
Hybrid solar inverter

KNOX Xenon 22500 15kW 3-Phase Hybrid Solar Inverter

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.730,000.00
Description The KNOX Xenon 22500 is a 15kW three-phase hybrid solar inverter with 22.5kW maximum PV input, dual MPPT, 48V battery support, and built-in Wi-Fi monitoring. With IP65 protection, dual outputs, batteryless operation, and grid-tied capability, it is designed for reliable residential...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Xenon 22500 is a 15kW three-phase hybrid solar inverter with 22.5kW maximum PV input, dual MPPT, 48V battery support, and built-in Wi-Fi monitoring. With IP65 protection, dual outputs, batteryless operation, and grid-tied capability, it is designed for reliable residential and commercial solar installations.

Key Features

  • 15kW rated output power
  • 22.5kW maximum PV input
  • Three-phase hybrid inverter
  • Dual MPPT with 27A maximum input current per tracker
  • 48V battery system
  • Maximum charging current up to 300A
  • IP65 protection for indoor and outdoor installation
  • Built-in Wi-Fi for remote monitoring
  • Dual output for smart and heavy loads
  • Batteryless operation supported
  • Grid-tied and off-grid operation
  • Pure sine wave output
  • Up to 96% maximum DC/AC conversion efficiency
  • 30kVA surge power
  • Parallel operation up to 6 units
  • 2-year full warranty + 10-year service warranty

Specifications

Specification Details
Model Xenon 22500 Twin
Series KNOX Xenon
Inverter Type Hybrid Solar Inverter
Phase Three Phase
Rated Output Power 15,000W
Maximum PV Input Power 22,500W
Maximum Charging Power 15,000W
Nominal DC Voltage 720VDC
Maximum DC Voltage 1000VDC
Start-up Voltage 320VDC
Initial Feeding Voltage 350VDC
MPP Voltage Range 350–950VDC
MPPT Trackers 2
Maximum Input Current 27A per MPPT
Strings per MPPT 2
Nominal AC Voltage 220/230/240VAC
Nominal Output Current 21.7A per phase
Power Factor 0.9 lag ~ 0.9 lead
Surge Power 30,000VA
Maximum DC/AC Efficiency 96%
European Efficiency 95%
Battery Voltage 48VDC
Battery Voltage Range 40–62VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
Maximum Charging Current 300A
Output Waveform Pure Sine Wave
DC-to-AC Efficiency 91%
Transfer Time 10ms PC / 20ms Home Appliances
Communication RS-232, RS-485, USB, CAN, Wi-Fi
Parallel Capability Up to 6 units
Dimensions (D × W × H) 255 × 660 × 750 mm
Net Weight 73 kg
Humidity 0–100% RH, non-condensing
Operating Temperature -25°C to 60°C
Storage Temperature -15°C to 60°C
Altitude 0–1000m
Protection Rating IP65
Warranty 2 Years Full + 10 Years Service
