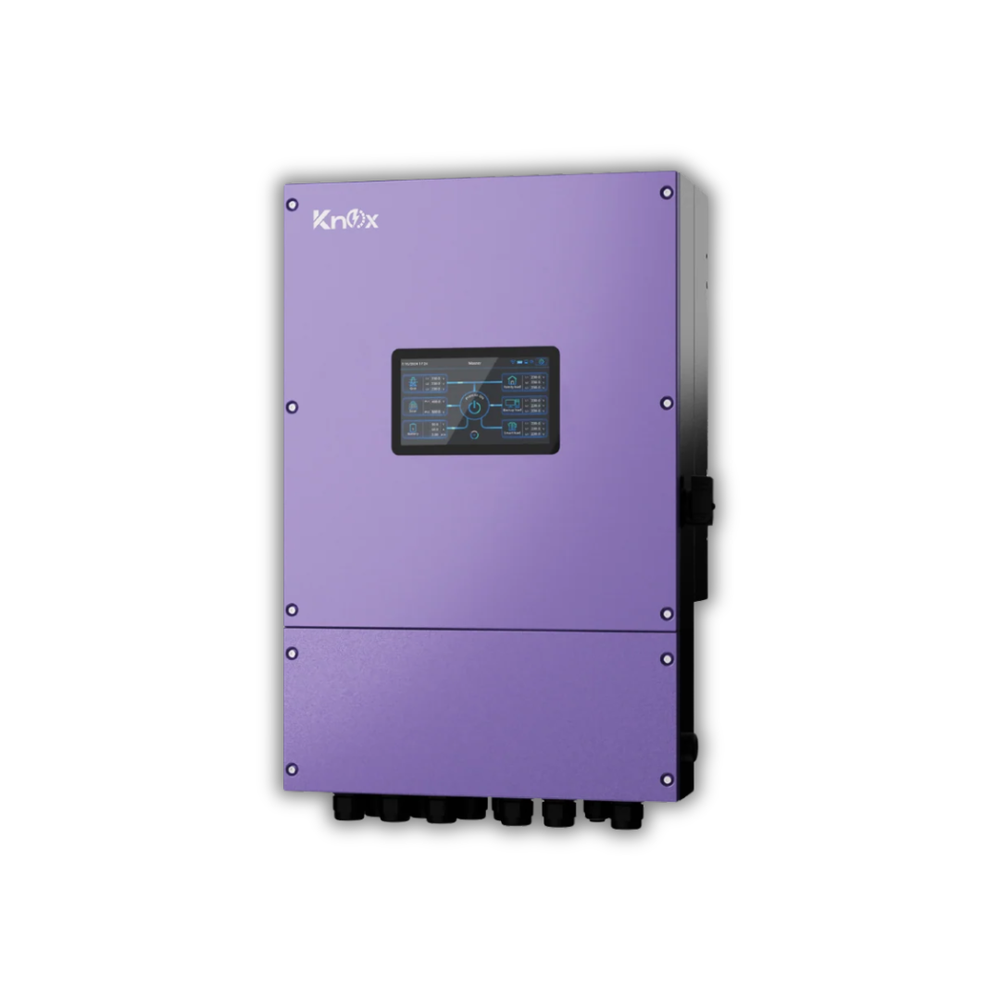

KNOX Xenon 12066 6.6kW Hybrid Solar Inverter – 48V Dual MPPT

Description

The KNOX Xenon 12066 6.6kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential and commercial solar energy systems. With a 6.6kW rated output and support for up to 12kW of PV input, it provides flexible solar energy conversion and battery-based backup functionality.

Featuring dual MPPT trackers, a 120–500VDC MPPT voltage range, and up to 22A input current, the Xenon 12066 supports flexible PV configurations. Its 48V battery system, MPPT solar charger, and maximum charging/discharging current of 120A / 140A provide versatile energy storage options.

The inverter features IP66 protection, making it suitable for outdoor and demanding environments. A built-in 7-inch touchscreen HMI, Wi-Fi connectivity, and multiple communication interfaces support convenient system monitoring and management.

The Xenon 12066 also supports parallel operation of up to 9 units, allowing system capacity to be expanded for higher energy requirements. Its 10ms transfer time for personal computers and 20ms for home appliances supports fast switching between power sources.

Key Features

• 6.6kW / 6600W rated output
• Up to 12kW maximum PV input power
• Dual MPPT solar trackers
• 120–500VDC MPPT voltage range
• 22A maximum PV input current
• 48V battery system
• Maximum charging power of 6600W
• 120A maximum charging / 140A maximum discharging current
• Pure sine wave output
• Up to 95% maximum conversion efficiency
• 7-inch touchscreen HMI
• Built-in Wi-Fi
• Dual AC outputs for load management
• Parallel operation of up to 9 units
• IP66 waterproof and dustproof enclosure
• RS-232, RS-485, USB, CAN and Wi-Fi communication
• Operating temperature: -25°C to 60°C

Specifications
