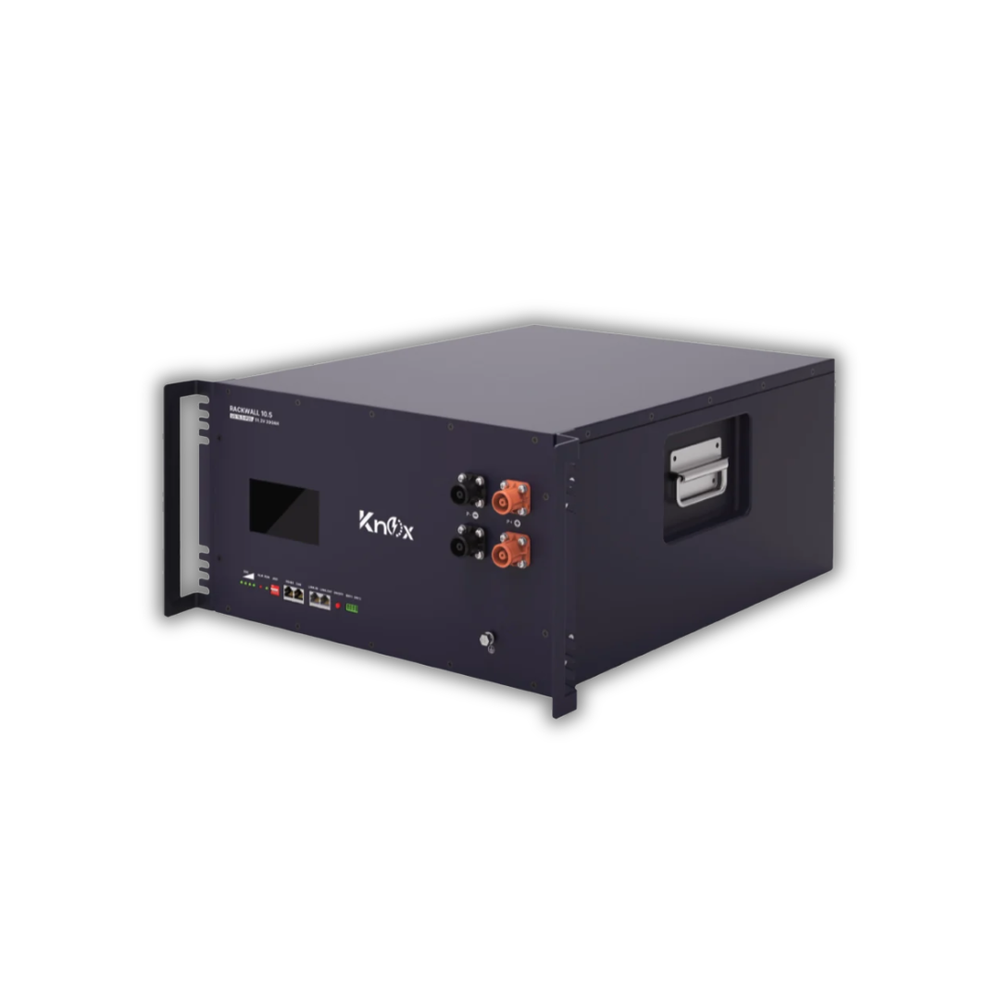

KNOX Rack Wall 10.5 10.24kWh 51.2V 200Ah LiFePO4 Battery
Lithium Battery

KNOX Rack Wall 10.5 10.24kWh 51.2V 200Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.480,000.00
Description The KNOX Rack Wall 10.5 is a 51.2V 200Ah LiFePO4 lithium battery with 10.24kWh energy capacity, designed for residential, commercial, and off-grid solar energy storage. With 6000+ cycles, a 4.3” touch LCD, smart BMS protection, and RS485/CAN communication, it supports flexible...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Rack Wall 10.5 is a 51.2V 200Ah LiFePO4 lithium battery with 10.24kWh energy capacity, designed for residential, commercial, and off-grid solar energy storage. With 6000+ cycles, a 4.3” touch LCD, smart BMS protection, and RS485/CAN communication, it supports flexible wall-mounted or standard 19-inch rack installation and up to 15 units in parallel.

Key Features

  • 10.24kWh energy capacity
  • 51.2V 200Ah LiFePO4 battery


  • 6000 cycle life

  • 200A maximum charging current
  • 200A maximum continuous discharge current
  • 240A pulse discharge for 2 seconds
  • Integrated smart BMS
  • 4.3” touch LCD for real-time monitoring
  • RS485 and CAN communication for inverter integration
  • LINK-IN / LINK-OUT for battery-to-battery communication
  • Standard 19-inch rack and wall-mounted installation
  • Up to 15 units in parallel
  • 10-year designed calendar life
  • Multiple protection functions
  • Series connection not supported

Specifications

Specification Details
Brand KNOX
Model LIO 10.5-IP20
Battery Technology LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Total Energy 10240Wh / 10.24kWh
Maximum Charging Current 200A
Maximum Discharging Current 200A
Pulse Discharge Current 240A @ 2 seconds
Charging Voltage 55.2–57.6V
End-of-Discharge Voltage 48V
Cycle Life >6000 cycles
Designed Calendar Life 10 years
Communication – Inverter RS485 / CAN
Communication – Battery LINK-IN / LINK-OUT
Display 4.3” Touch LCD
Mounting Wall-Mounted / 19” Rack-Mount
Parallel Support Up to 15 units
Series Support Not Supported
Protection Over Voltage, Low Voltage, Over Current, Over Temperature, Low Temperature, Short Circuit
Operating Temperature – Charge 0°C to +55°C
Operating Temperature – Discharge -20°C to +55°C
Humidity 0–95% RH, non-condensing
Dimensions (W × D × H) 442 × 550 × 250 mm
Weight 83 kg
Protection Rating IP20
