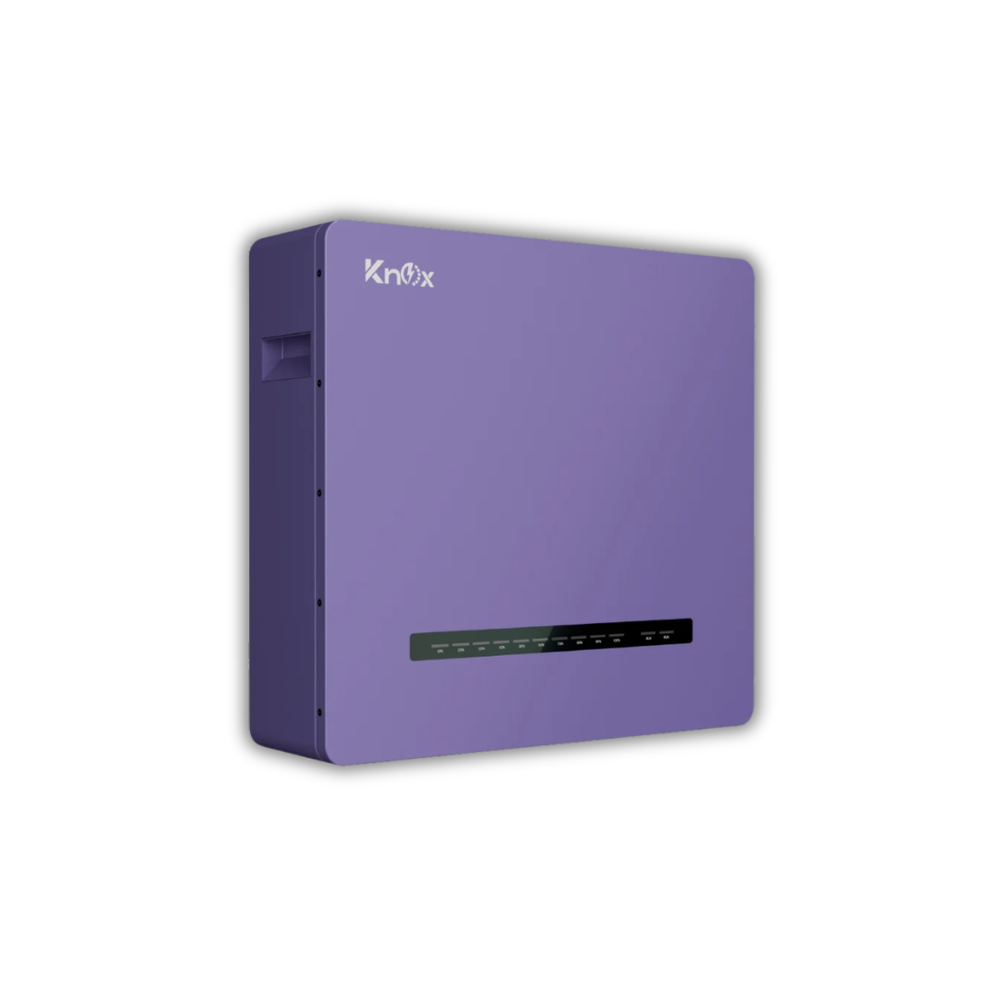

KNOX Power Wall 6.0 5.12kWh 51.2V 100Ah LiFePO4 Battery
Lithium Battery

KNOX Power Wall 6.0 5.12kWh 51.2V 100Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Skysolar store
Rs.225,000.00
Description The KNOX Power Wall 6.0 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity, designed for solar energy storage, backup power, and residential or commercial applications. With 6000+ cycles, built-in protection and cell balancing, LCD monitoring, and RS485/RS232/CAN communication,...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Power Wall 6.0 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity, designed for solar energy storage, backup power, and residential or commercial applications. With 6000+ cycles, built-in protection and cell balancing, LCD monitoring, and RS485/RS232/CAN communication, it provides reliable and scalable energy storage with up to 8 units in parallel.

Note: Battery DC cables are not included in the box.

Key Features

  • 5.12kWh energy capacity
  • 51.2V 100Ah LiFePO4 battery
  • A-grade prismatic LiFePO4 cells
  • 6000+ cycles at 80% DOD
  • 100A maximum charge and discharge current
  • 120A peak discharge current
  • Built-in cell balancing
  • Overcharge, over-discharge, temperature, overcurrent, and short-circuit protection
  • Low-power, high-brightness LED display
  • Durable metal casing for improved heat dissipation
  • RS485 / RS232 / CAN communication
  • Wall-mounted design
  • Up to 8 units in parallel
  • IP20 protection
  • UN38.3 and MSDS certified

Specifications

Specification Details
Model LIO 5.20-IP20
Battery Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy Capacity 5120Wh / 5.12kWh
Pack Configuration 16S1P
Continuous Discharge Current 100A
Maximum Charge Current 100A
Maximum Discharge Current 100A
Peak Discharge Current 120A
Recommended Discharge Current 50A
Charge Cut-off Voltage 57.6V
Discharge Cut-off Voltage 41.6V
Recommended DOD 80%
Cycle Life >6000 cycles @ 25°C, 0.5C, 80% DOD
Communication RS485 / RS232 / CAN
Display LED
Mounting Wall-Mounted
Ingress Protection IP20
Terminal M6
Charge Temperature 0°C to +55°C
Discharge Temperature -20°C to +60°C
Optimal Storage Temperature 5°C to +35°C
Relative Humidity 40%–80% RH
Dimensions (L × W × H) 533 × 500 × 150 mm
Weight 45.1 ± 0.5 kg
Parallel Scalability Up to 8 units
Certification UN38.3, MSDS
DC Cables Not Included
