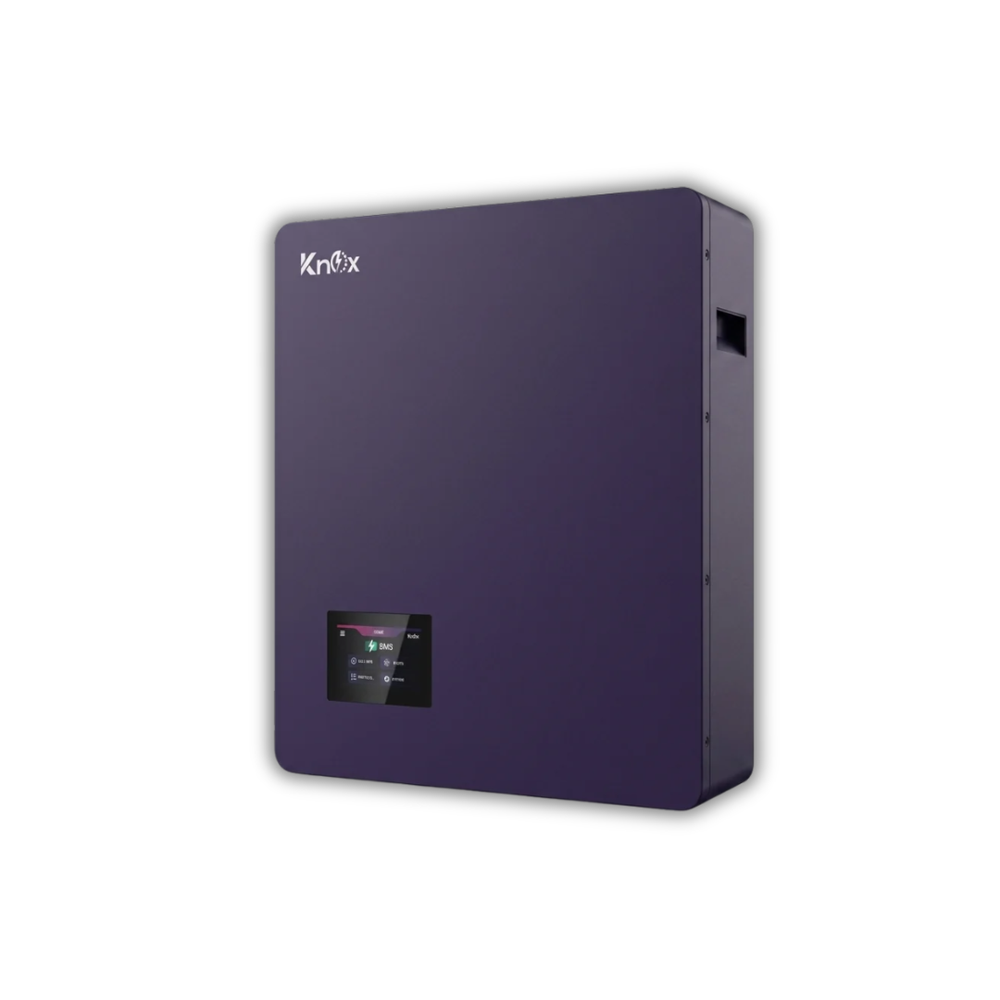

KNOX LIO 5.32 5.12kWh 51.2V 100Ah LiFePO4 Battery
Lithium Battery

KNOX LIO 5.32 5.12kWh 51.2V 100Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.230,000.00
Description The KNOX LIO 5.32 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity and 6000+ cycle life. Its wall-mounted design, quick-plug connection, HMI touchscreen, and RS485/RS232/CAN communication make it a practical solution for residential solar storage and backup power...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX LIO 5.32 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity and 6000+ cycle life. Its wall-mounted design, quick-plug connection, HMI touchscreen, and RS485/RS232/CAN communication make it a practical solution for residential solar storage and backup power systems.

Key Features

  • 5.12kWh energy storage capacity
  • 51.2V 100Ah LiFePO4 battery
  • 6000+ cycle life
  • 150A continuous discharge current
  • 200A peak discharge current for 5ms
  • HMI touchscreen display
  • RS485 / RS232 / CAN communication
  • Wall-mounted design
  • Quick-plug connection
  • IP20 protection for indoor applications
  • UN38.3 / MSDS certified
  • Wide operating temperature range

Specifications

Specification Details
Brand KNOX
Model LIO 5.32
Battery Technology LiFePO4
Nominal Voltage 51.2V
Capacity 100Ah
Energy Capacity 5120Wh / 5.12kWh
Pack Configuration 16S1P
Charge Cut-Off Voltage 58.4V
Discharge Cut-Off Voltage 43.2V
Maximum Charge Current 100A
Continuous Discharge Current 150A
Peak Discharge Current 200A @ 5ms
Cycle Life >6000 Cycles
Communication RS485 / RS232 / CAN
Display HMI Touchscreen
Mounting Wall-Mounted
Connection Quick Plug
Ingress Protection IP20
Charge Temperature 0°C to +55°C
Discharge Temperature -20°C to +60°C
Optimal Storage Temperature 5°C to +35°C
Relative Humidity 40%–80%
Dimensions 500 × 470 × 150 mm
Weight 44.5 ± 0.5 kg
Certifications UN38.3 / MSDS
