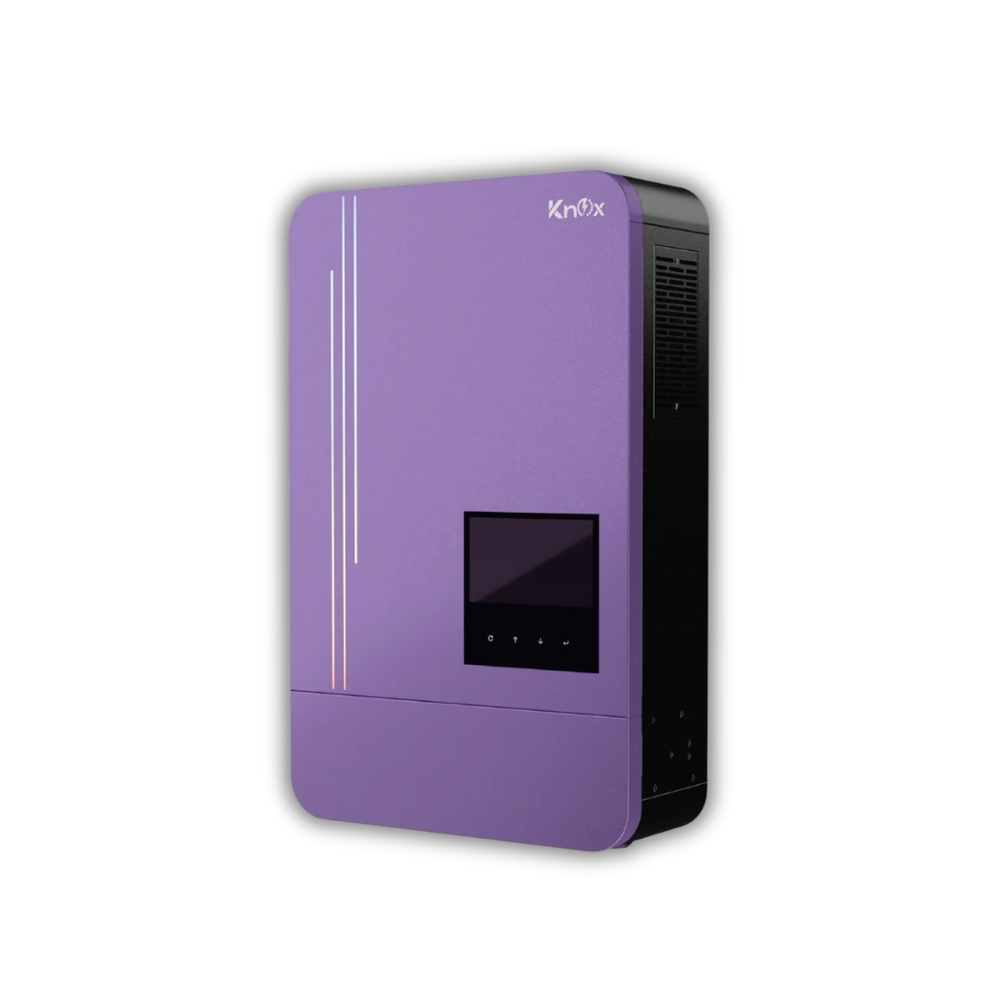

KNOX Krypton 6000 4kW Hybrid Solar Inverter
Hybrid solar inverter

KNOX Krypton 6000 4kW Hybrid Solar Inverter

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.118,000.00
Description The KNOX Krypton 6000 4kW Hybrid Solar Inverter supports up to 6kW PV input with a 24V battery system for flexible grid-tie and off-grid operation. Featuring MPPT charging, 120A maximum charging current, 95% DC/AC conversion efficiency, and pure sine wave output,...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Krypton 6000 4kW Hybrid Solar Inverter supports up to 6kW PV input with a 24V battery system for flexible grid-tie and off-grid operation. Featuring MPPT charging, 120A maximum charging current, 95% DC/AC conversion efficiency, and pure sine wave output, it provides reliable power for residential and commercial solar applications.

Key Features

  • 4kW rated output power
  • 6kW maximum PV input
  • Grid-tie and off-grid operation
  • 24V battery system
  • MPPT solar charger
  • Up to 120A solar charging current
  • Up to 120A AC charging current
  • 9kVA surge power
  • Up to 95% DC/AC conversion efficiency
  • Pure sine wave output
  • Wide 60–450V MPPT voltage range
  • Built-in Wi-Fi monitoring
  • USB / RS232 / RS485 / Dry-contact communication
  • Operating temperature: -10°C to 50°C

Specifications

Specification Details
Brand KNOX
Series Krypton
Model Krypton 6000
Model Code 4kW-24-PV6000-TW/N
Phase Single Phase
Rated Output Power 4000W / 4kW
Maximum PV Input Power 6000W / 6kW
Battery + PV Output Power 4000W
Nominal / Maximum DC Voltage 500VDC
Start-up / Initial Feeding Voltage 120VDC / 60VDC
MPPT Voltage Range 60–450VDC
MPPT Trackers / Input Current 1 / 30A, Max 40A
Nominal AC Output Voltage 220/230/240VAC
AC Output Voltage Range 90–280VAC / 180–280VAC
Nominal Output Current 17.4A
Power Factor >0.99
Maximum Conversion Efficiency 95%
AC Input Voltage Range 90–280VAC / 170–280VAC
Frequency 50/60Hz Auto-Sensing
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection 32VDC
Solar Charger MPPT
Maximum Solar Charging Current 120A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Surge Power 9000VA
Output Waveform Pure Sine Wave
DC to AC Efficiency 80%
Transfer Time 10ms / 20ms
Communication USB / RS232 / RS485 / Wi-Fi / Dry Contact
Dimensions (D × W × H) 119 × 313.6 × 457.5 mm
Net Weight Not Specified
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 0–90% RH, Non-Condensing
Certifications IEC 61683, IEC 62109-1, IEC 62109-2
