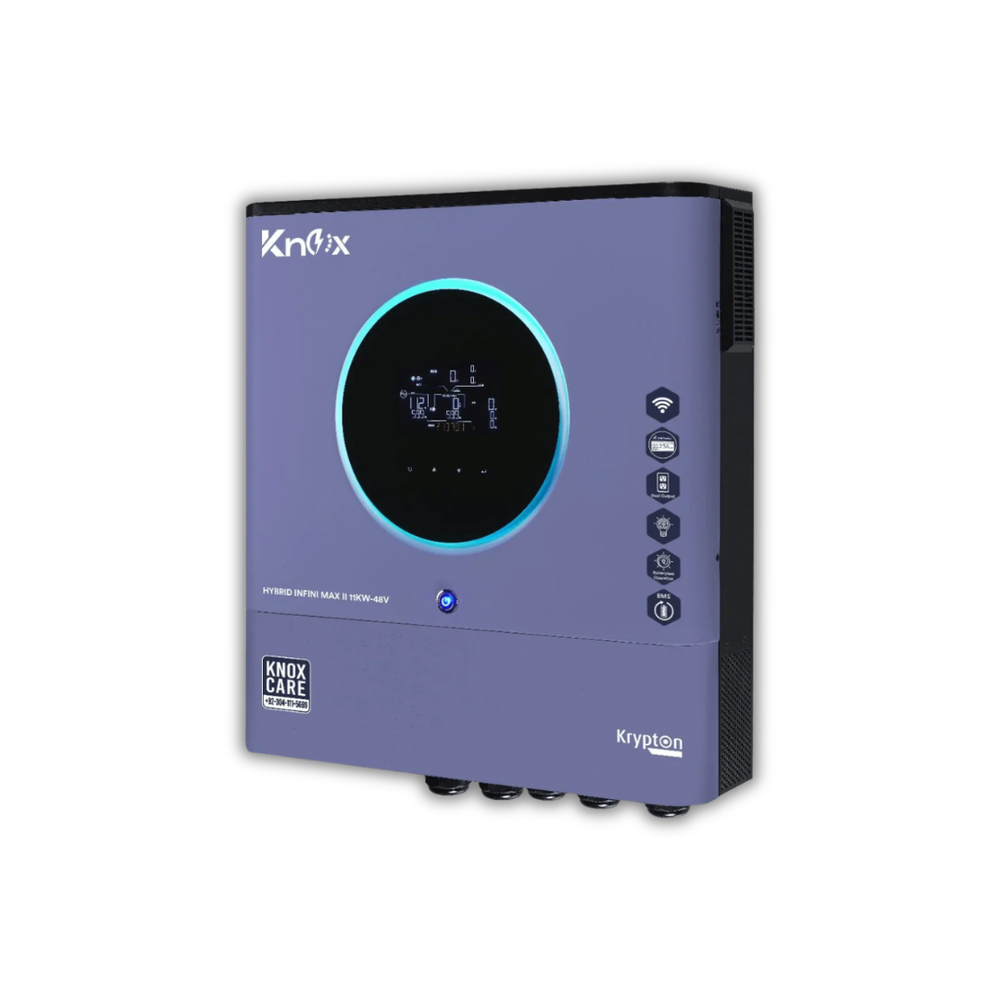

KNOX Krypton 11000 8kW Hybrid Solar Inverter
Hybrid solar inverter

KNOX Krypton 11000 8kW Hybrid Solar Inverter

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.185,000.00
Description The KNOX Krypton 11000 is an 8kW single-phase hybrid solar inverter with 11kW maximum PV input, dual MPPT, 48V battery support, and built-in Wi-Fi monitoring. It supports grid-tied and batteryless operation, dual-load management, and parallel operation for residential and small commercial...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Krypton 11000 is an 8kW single-phase hybrid solar inverter with 11kW maximum PV input, dual MPPT, 48V battery support, and built-in Wi-Fi monitoring. It supports grid-tied and batteryless operation, dual-load management, and parallel operation for residential and small commercial solar systems.

Key Features

  • 8kW rated output power
  • 11kW maximum PV input (5.5kW × 2)
  • Single-phase hybrid solar inverter
  • Dual MPPT with 27A × 2 input current, up to 40A maximum
  • 48V battery system
  • 150A maximum solar charging current
  • 120A maximum AC charging current
  • 16kVA surge power
  • Built-in Wi-Fi for online monitoring
  • IP21 protection rating
  • Dual output for smart and heavy loads
  • Grid-tied operation
  • Batteryless operation supported
  • Battery Management System
  • Pure sine wave output
  • Up to 95% maximum DC/AC conversion efficiency
  • Parallel operation up to 6 units

Specifications

Specification Details
Model Krypton 11000
Series KNOX Krypton
Model Type Hybrid InfiniMax II 8kW-48V Twin
Phase Single Phase
Rated Output Power 8000W
Maximum PV Input Power 11,000W (5500W × 2)
Nominal DC Voltage 500VDC
Start-up Voltage 120VDC
Initial Feeding Voltage 150VDC
MPP Voltage Range 90–450VDC
MPPT Trackers 2
Maximum PV Input Current 27A × 2, 40A Max
Nominal AC Output Voltage 220/230/240VAC
AC Output Voltage Range 170–280VAC / 90–280VAC
Nominal Output Current 35A
Power Factor >0.99
Maximum DC/AC Efficiency 95%
DC-to-AC Efficiency 93%
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
Maximum Solar Charging Current 150A
Maximum AC Charging Current 120A
Maximum Charging Current 150A
Solar Charger Type MPPT
Output Waveform Pure Sine Wave
Surge Power 16,000VA
Transfer Time 10ms PC / 20ms Home Appliances
Communication USB / RS232 / RS485 / Wi-Fi / Dry Contact
Parallel Capability Up to 6 units
Protection Rating IP21
Dimensions (D × W × H) 158.4 × 503.6 × 530.8 mm
Net Weight 20 kg
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 0–90% RH, non-condensing
