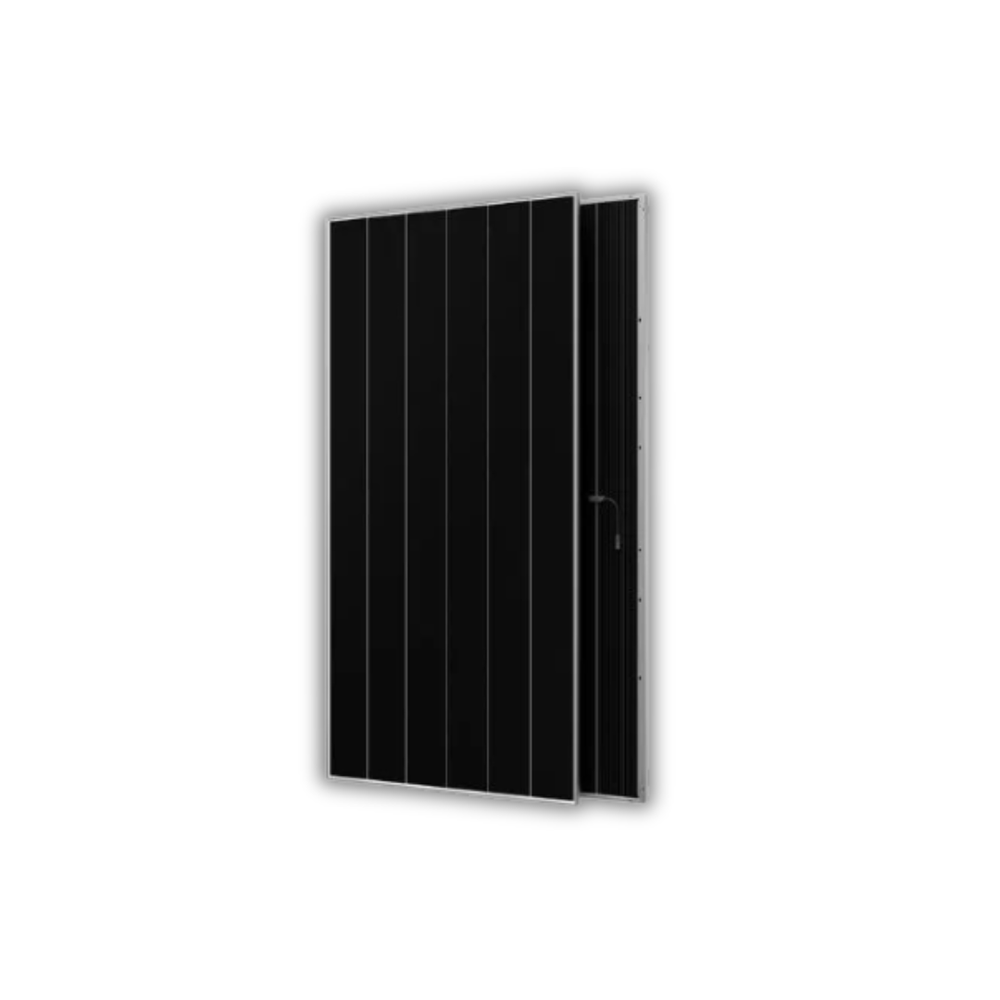

AIKO 770W N-Type ABC Bifacial Solar Panel | 24% Efficiency | 1500V | 30-Year Warranty
solar Panels

AIKO 770W N-Type ABC Bifacial Solar Panel | 24% Efficiency | 1500V | 30-Year Warranty

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.27,500.00
The AIKO 770W N-Type ABC Bifacial Solar Panel delivers ultra-high power output with up to 24% efficiency for commercial, industrial, and utility-scale solar systems. Featuring 80±5% bifaciality, dual-glass construction, IP68 protection, and 1500V system voltage, it provides excellent energy yield and long-term...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

The AIKO 770W N-Type ABC Bifacial Solar Panel delivers ultra-high power output with up to 24% efficiency for commercial, industrial, and utility-scale solar systems. Featuring 80±5% bifaciality, dual-glass construction, IP68 protection, and 1500V system voltage, it provides excellent energy yield and long-term reliability.



Key Features

  • ⚡ 770W Ultra-High Power – Maximum output for large-scale solar installations.
  • ☀️ Up to 24% Efficiency – High energy generation from a large-format module.
  • 🔋 N-Type ABC Technology – Advanced back-contact cell technology for improved performance.
  • 🔄 80±5% Bifacial Factor – Generates additional energy from reflected light on the rear side.
  • 🛡️ Dual-Glass Design – 2.0mm + 2.0mm glass construction for enhanced durability.
  • 🌡️ Excellent Temperature Performance – Reliable operation from -40°C to +70°C.
  • 💪 High Mechanical Strength – Supports up to 5400Pa front / 2400Pa rear static load.
  • 🌧️ IP68 Junction Box – Strong protection against dust and moisture.
  • 🔥 IEC Class A Fire Rating – Enhanced protection for demanding installations.
  • 🔌 1500V System Voltage – Suitable for modern commercial and utility-scale solar systems.
  • 🔧 MC4 Compatible – Easy integration with standard solar system components.
  • 📉 30-Year Linear Performance Warranty – Long-term energy generation assurance.

Key Specifications

Specification Details
Brand AIKO
Series Stellar 2N+
Model AIKO-A-GRH78Dw
Rated Power 770W
Cell Technology N-Type ABC
Cell Configuration 156 Cells (6 × 26)
Bifacial Factor 80 ± 5%
Module Efficiency Up to 24%
Glass Dual Glass, 2.0 + 2.0mm
Frame Anodized Aluminium
Junction Box IP68, 3 Bypass Diodes
Connector MC4 Compatible
Cable 4mm² IEC / 12AWG UL
Dimensions 2465 × 1303 × 33mm
Weight 39.8kg ±3%
Maximum System Voltage 1500V DC
Maximum Series Fuse 30A
Operating Temperature -40°C to +70°C
Voc & Isc Tolerance ±3%
Front Static Load 5400Pa
Rear Static Load 2400Pa
Hail Test 25mm hail at 23m/s
Fire Rating IEC Class A
Protection Class Class II
Product Warranty 15 Years*
Performance Warranty 30 Years

Description

FAQs

Is this product genuine?

Yes, we provide genuine products from trusted brands.

What is the warranty?

Warranty is provided according to the product terms shown on this page.

How long does delivery take?

Estimated shipping time is 48 to 72 Hours, subject to location and product availability.
