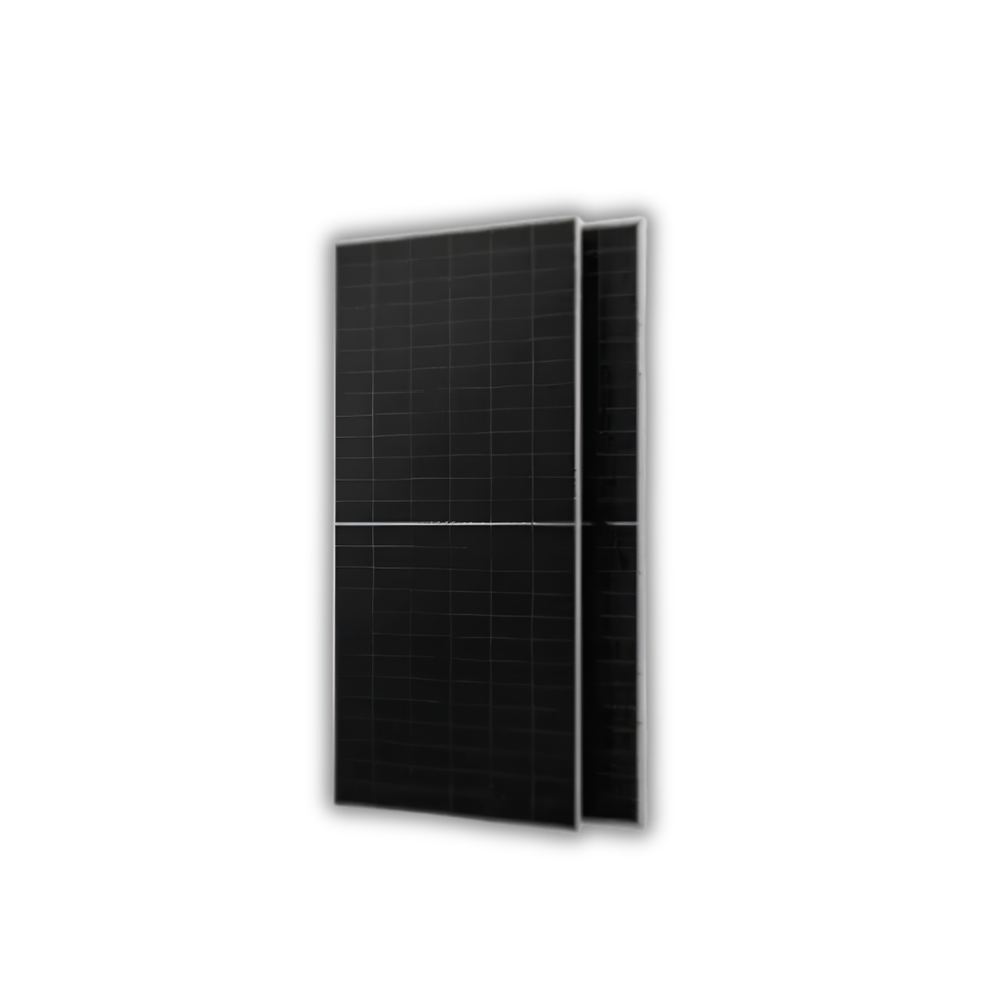

AIKO 665W N-Type ABC Bifacial Solar Panel | 24.6% Efficiency | 1500V | 30-Year Warranty
★★★★★
5.0 (3 reviews)
Brand: Sky Solar
Rs.29,950.00
The AIKO 665W N-Type ABC Bifacial Solar Panel delivers high power output and 24.6% efficiency for commercial, industrial, and utility-scale solar systems. Featuring ABC technology, bifacial generation, dual-glass construction, and IP68 protection, it provides excellent energy yield and long-term reliability. Key...
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service
Customer will pay Cargo charges on delivery.
The AIKO 665W N-Type ABC Bifacial Solar Panel delivers high power output and 24.6% efficiency for commercial, industrial, and utility-scale solar systems. Featuring ABC technology, bifacial generation, dual-glass construction, and IP68 protection, it provides excellent energy yield and long-term reliability.
Key Features
- ⚡ 665W High Power Output – Excellent generation for large-scale solar systems.
- ☀️ 24.6% Module Efficiency – High efficiency for maximum energy production.
- 🔋 N-Type ABC Technology – All Back Contact cell design improves light utilization and reduces front-side shading.
- 🔄 Bifacial Energy Generation – Generates power from both front and rear sides of the module.
- 🌡️ Enhanced Temperature Performance – Designed for reliable output in high-temperature environments.
- 📉 Low Degradation – ≤1% first-year degradation and ≤0.35% annual degradation from Year 2–30.
- 🛡️ 30-Year Performance Warranty – Long-term guaranteed module performance.
- 🏆 15-Year Product Warranty – Extended product protection.
- 💪 Dual-Glass Construction – 2.0mm coated semi-tempered front and rear glass for durability.
- 🌧️ IP68 Junction Box – Strong protection against dust and moisture.
- 🔥 IEC Class A Fire Rating – Enhanced fire safety for demanding installations.
- 💨 High Mechanical Load – Up to 5400Pa front and 2400Pa rear static load.
- 🔌 1500V System Voltage – Suitable for modern commercial and utility-scale systems.
- 🔧 MC4 Compatible – Easy integration with standard solar installation components.
Key Specifications
| Specification | Details |
|---|---|
| Brand | AIKO |
| Series | 3N+ |
| Model | AIKO-A665-MDE72Dw |
| Rated Power | 665W |
| Cell Technology | N-Type ABC |
| Cell Type | Bifacial |
| Number of Cells | 144 (6 × 24) |
| Module Efficiency | 24.6% |
| Maximum Power (Pmax) | 665W |
| Vmp | 45.09V |
| Imp | 14.75A |
| Voc | 55.20V |
| Isc | 15.45A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +70°C |
| Front Glass | 2.0mm Coated Semi-Tempered |
| Rear Glass | 2.0mm Semi-Tempered |
| Frame | Anodized Aluminium |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | MC4 Compatible / MC4-EVO2A |
| Cable | 4mm² |
| Dimensions | 2382 × 1134 × 30mm |
| Weight | 32.2kg ±3% |
| Front Static Load | 5400Pa |
| Rear Static Load | 2400Pa |
| Fire Rating | IEC Class A |
| Power Tolerance | 0 to +3% |
| First-Year Degradation | ≤1% |
| Annual Degradation (Year 2–30) | ≤0.35% |
| Product Warranty | 15 Years |
| Performance Warranty | 30 Years |
Description
Key Features
Technical Specifications
FAQs
Is this product genuine?
Yes, we provide genuine products from trusted brands.
What is the warranty?
Warranty is provided according to the product terms shown on this page.
How long does delivery take?
Estimated shipping time is 48 to 72 Hours, subject to location and product availability.
