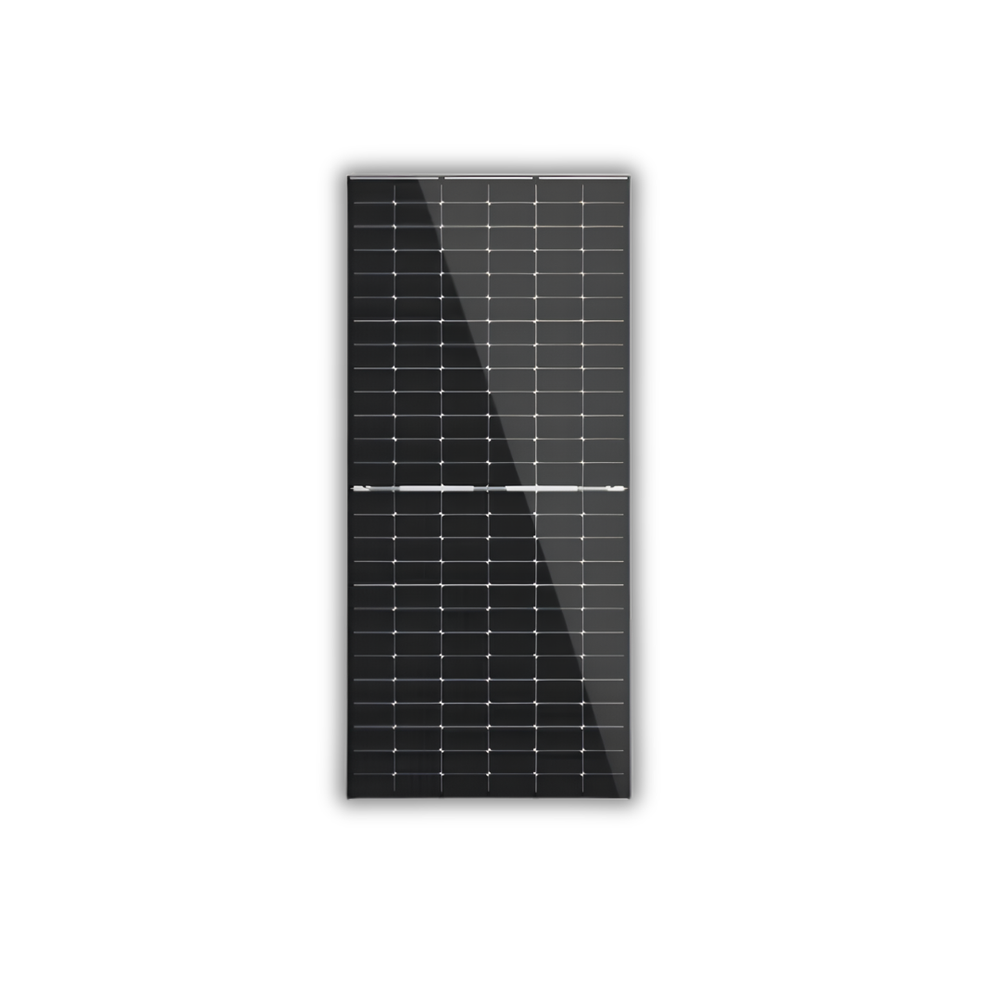

AIKO 655W N-Type ABC Bifacial Solar Panel | 24.2% Efficiency | 1500V | 30-Year Warranty
solar Panels

AIKO 655W N-Type ABC Bifacial Solar Panel | 24.2% Efficiency | 1500V | 30-Year Warranty

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.28,500.00
The AIKO 655W N-Type ABC Bifacial Solar Panel delivers high power output with 24.2% efficiency and 75±5% bifaciality for residential, commercial, and utility-scale solar systems. Featuring dual-glass construction, IP68 protection, and 1500V system voltage, it provides excellent energy yield and long-term reliability....
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

The AIKO 655W N-Type ABC Bifacial Solar Panel delivers high power output with 24.2% efficiency and 75±5% bifaciality for residential, commercial, and utility-scale solar systems. Featuring dual-glass construction, IP68 protection, and 1500V system voltage, it provides excellent energy yield and long-term reliability.

Key Features

  • ⚡ 655W High Power Output – Delivers high energy generation from every module.
  • ☀️ 24.2% Module Efficiency – Excellent efficiency for better space utilization.
  • 🔋 N-Type ABC Technology – Advanced All Back Contact cell technology for improved energy conversion.
  • 🔄 75±5% Bifacial Factor – Captures additional reflected sunlight from the rear side.
  • 🌡️ Excellent Hot-Climate Performance – Temperature coefficient of Pmax at -0.26%/°C.
  • 🛡️ Dual-Glass Construction – 2.0mm + 2.0mm coated semi-tempered glass for enhanced durability.
  • 📉 Low Degradation – ≤1% first-year degradation and ≤0.35% annual degradation from Year 2–30.
  • 🏆 30-Year Performance Warranty – Long-term energy generation assurance.
  • 🌧️ IP68 Junction Box – Strong protection against dust and moisture.
  • 💪 High Mechanical Strength – Up to 5400Pa front and 2400Pa rear loading.
  • 🔥 IEC Class A Fire Rating – Enhanced protection for demanding solar installations.
  • 🔌 1500V System Voltage – Suitable for modern commercial and utility-scale systems.
  • 🔧 MC4 Compatible – Easy installation with standard solar components.

Key Specifications

Specification Details
Brand AIKO
Series Stellar 1N+
Model AIKO-A-GRH66Dw
Rated Power 655W
Cell Technology N-Type ABC
Module Type Bifacial
Number of Cells 132 (6 × 22)
Module Efficiency 24.2%
Bifacial Factor 75 ± 5%
Pmax 655W
Vmp 40.80V
Imp 16.06A
Voc 49.80V
Isc 16.72A
Maximum System Voltage 1500V DC
Maximum Series Fuse 30A
Operating Temperature -40°C to +85°C
Glass 2.0 + 2.0mm Dual Glass
Frame Anodized Aluminium
Junction Box IP68, 3 Bypass Diodes
Connector MC4 Compatible / MC4-EVO2A
Cable 4mm² IEC / 12AWG UL
Dimensions 2382 × 1134 × 30mm
Weight 32.5kg ±3%
Front Static Load 5400Pa
Rear Static Load 2400Pa
Hail Test 25mm at 23m/s
Fire Rating IEC Class A
Protection Class Class II
Power Tolerance ±3%
First-Year Degradation ≤1%
Annual Degradation (Year 2–30) ≤0.35%
Performance Warranty 30 Years
