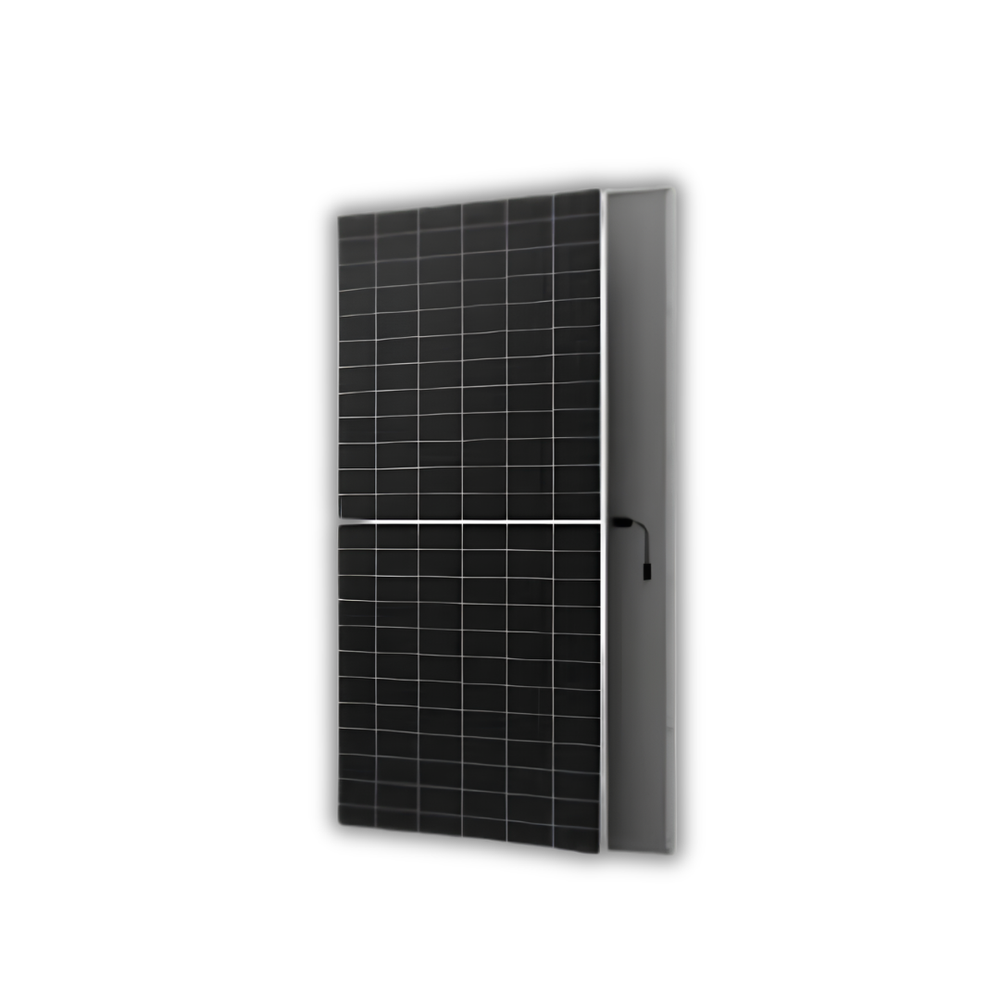

AIKO 650W N-Type ABC Monofacial Solar Panel | 24% Efficiency | 1500V | 30-Year Performance
solar Panels

AIKO 650W N-Type ABC Monofacial Solar Panel | 24% Efficiency | 1500V | 30-Year Performance

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.28,950.00
The AIKO 650W N-Type ABC Monofacial Solar Panel delivers high power output with up to 24% efficiency for commercial, industrial, and utility-scale solar systems. Featuring ABC All Back Contact technology, IP68 protection, 1500V system voltage, and excellent low-light performance, it provides reliable...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

The AIKO 650W N-Type ABC Monofacial Solar Panel delivers high power output with up to 24% efficiency for commercial, industrial, and utility-scale solar systems. Featuring ABC All Back Contact technology, IP68 protection, 1500V system voltage, and excellent low-light performance, it provides reliable long-term energy generation.

Key Features

  • ⚡ 650W High Power Output – More generation from each panel.
  • ☀️ Up to 24% Efficiency – High energy production with better space utilization.
  • 🔋 N-Type ABC Technology – All Back Contact design maximizes front-side light absorption.
  • 🎨 Clean Busbar-Free Appearance – Premium, uniform front surface with improved aesthetics.
  • 🌡️ Excellent Temperature Performance – Designed for reliable operation from -40°C to +85°C.
  • 🌥️ Strong Low-Light Performance – Maintains effective energy generation under changing sunlight conditions.
  • 🛡️ High Durability – Dual-glass construction provides strong environmental protection.
  • 🔌 1500V System Voltage – Supports longer strings and can help reduce BOS costs.
  • 🌧️ IP68 Junction Box – Protection against dust and moisture.
  • 💪 High Mechanical Load – Up to 5400Pa front / 2400Pa rear static loading.
  • 🔥 IEC Class C Fire Rating – Designed for reliable operation in solar installations.
  • 🔧 MC4 Compatible – Easy integration with standard solar system components.

Key Specifications

Specification Details
Brand AIKO
Series Polaris 1N+
Model AIKO-G-MCH72Dw
Rated Power 650W
Cell Technology N-Type ABC
Cell Configuration 144 (6 × 24)
Module Type Monofacial
Module Efficiency Up to 24%
Bifacial Factor 65 ± 5%*
Glass Dual Glass, 2.0 + 2.0mm Heat Strengthened
Maximum System Voltage 1500V DC
Maximum Series Fuse 30A
Operating Temperature -40°C to +85°C
Voc & Isc Tolerance ±3%
Junction Box IP68, 3 Bypass Diodes
Connector MC4 EVOA / MC4 EVO2
Cable 4mm² IEC / 12AWG UL
Frame Anodized Aluminium
Dimensions 2382 × 1134 × 30mm
Weight 33.5kg ±5%
Front Static Load 5400Pa
Rear Static Load 2400Pa
Hail Test 25mm at 23m/s
Fire Rating IEC Class C
Protection Class Class II
Warranty Refer to official AIKO warranty terms

Description

FAQs

Is this product genuine?

Yes, we provide genuine products from trusted brands.

What is the warranty?

Warranty is provided according to the product terms shown on this page.

How long does delivery take?

Estimated shipping time is 48 to 72 Hours, subject to location and product availability.
