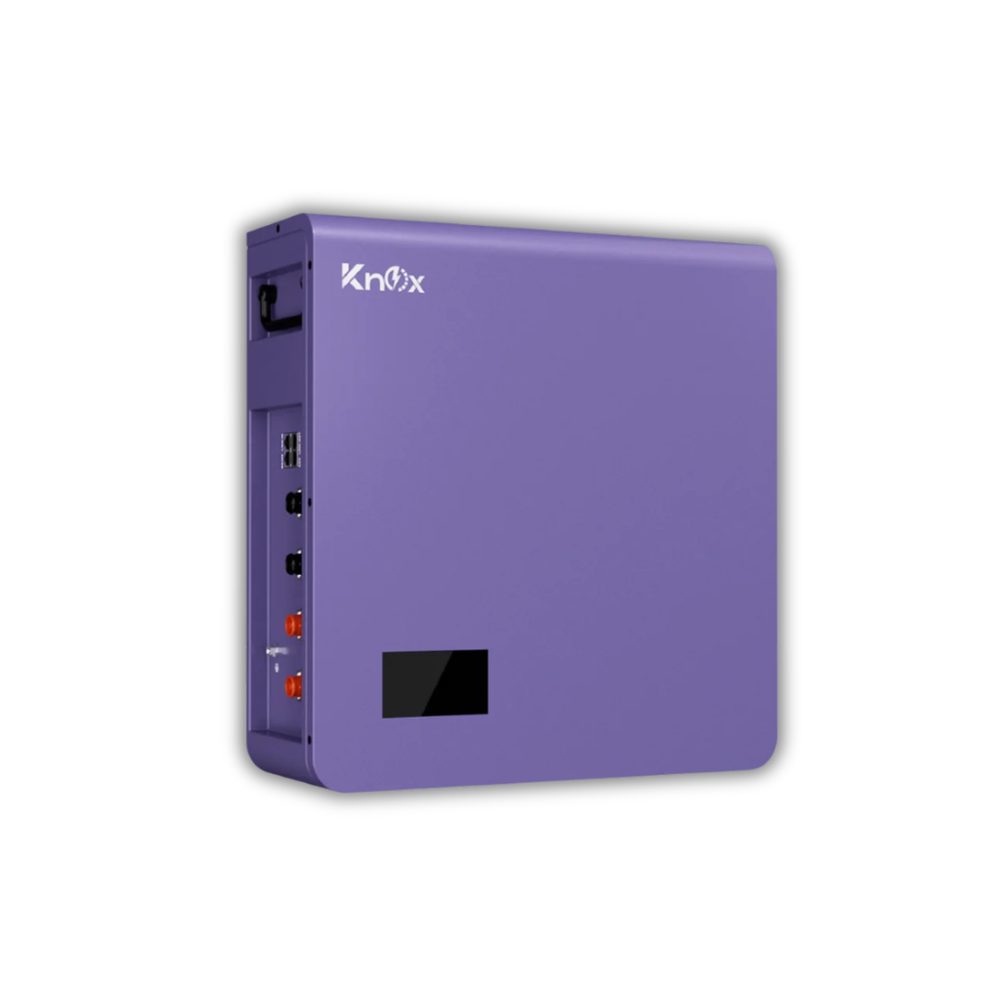

KNOX Power Wall 6.11 5.12kWh 51.2V 100Ah LiFePO4 Battery
Lithium Battery

KNOX Power Wall 6.11 5.12kWh 51.2V 100Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.235,000.00
Description The KNOX Power Wall 6.11 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity, designed for solar storage, backup power, and off-grid applications. Featuring a 4.3” touch LCD, advanced BMS protection, RS485/CAN communication, IP54 protection, and support for up...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Power Wall 6.11 is a 51.2V 100Ah LiFePO4 lithium battery with 5.12kWh energy capacity, designed for solar storage, backup power, and off-grid applications. Featuring a 4.3” touch LCD, advanced BMS protection, RS485/CAN communication, IP54 protection, and support for up to 15 units in parallel, it provides scalable and reliable energy storage.

Key Features

  • 5.12kWh energy capacity
  • 51.2V 100Ah LiFePO4 battery


  • 6000 cycle life

  • 10-year designed calendar life
  • Advanced BMS protection
  • Over-voltage, low-voltage, over-current, temperature, and short-circuit protection
  • 4.3” LCD touchscreen for monitoring
  • RS485 and CAN communication
  • Protocol switching through LCD
  • LINK-IN / LINK-OUT battery communication
  • Wall-mounted design with quick-lock terminals
  • IP54 protection
  • Up to 15 units in parallel
  • Series connection not supported
  • Wide operating temperature range
  • Maintenance-free design

Specifications

Specification Details
Brand KNOX
Model LIO 5.32-IP54
Battery Technology LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Total Energy 5120Wh / 5.12kWh
Maximum Charging Current 100A
Maximum Discharging Current 100A
Pulse Discharge Current 120A @ 2 seconds
Charging Voltage 55.2–57.6V
End-of-Discharge Voltage 48V
Cycle Life >6000 cycles
Designed Calendar Life 10 years
Communication – Inverter RS485 / CAN
Communication – Battery LINK-IN / LINK-OUT
Display 4.3” Touch LCD
Mounting Wall-Mounted
Protection Rating IP54
Parallel Support Up to 15 units
Series Support Not Supported
Protection Over Voltage, Low Voltage, Over Current, Over Temperature, Low Temperature, Short Circuit
Charging Temperature 0°C to +55°C
Discharging Temperature -20°C to +55°C
Humidity 0–95% RH, non-condensing
Dimensions (W × D × H) 442 × 470 × 160 mm
Weight 46 kg
