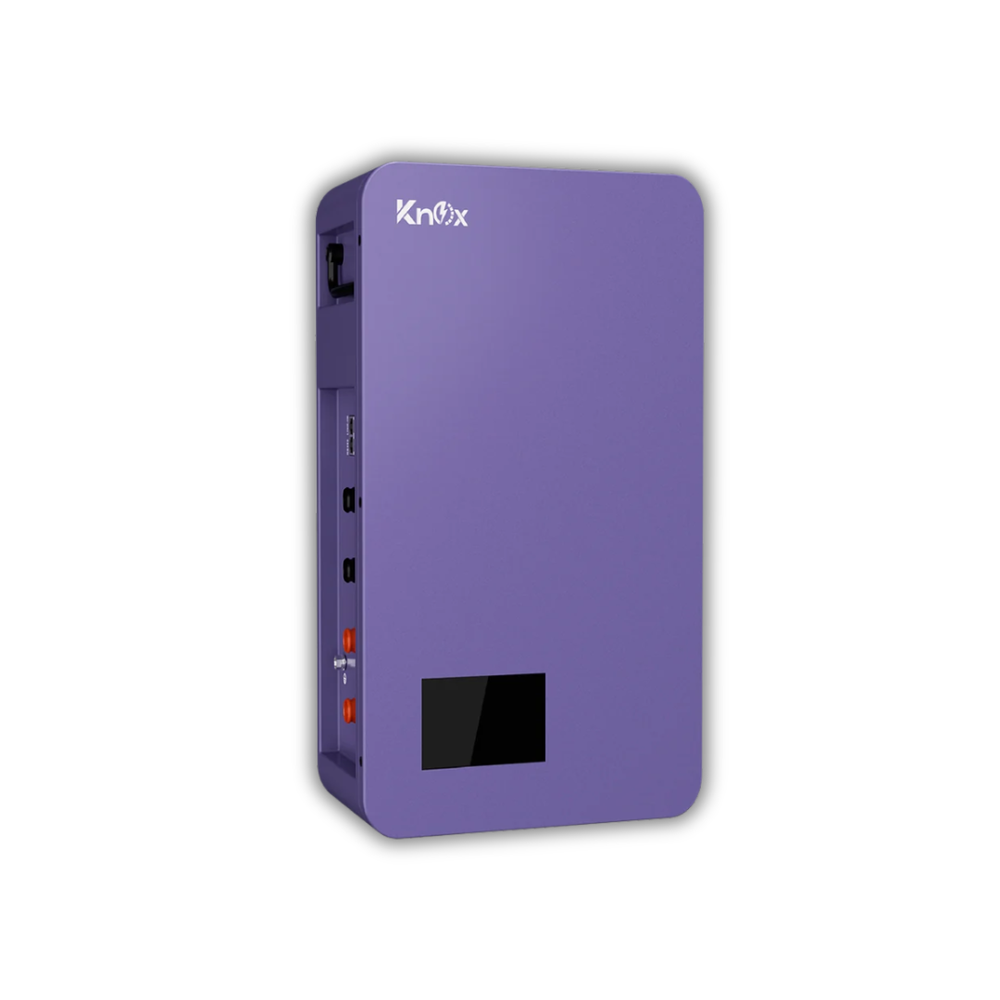

KNOX Power Wall 3.1 2.56kWh 25.6V 100Ah LiFePO4 Battery
Lithium Battery

KNOX Power Wall 3.1 2.56kWh 25.6V 100Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.133,000.00
Description The KNOX Power Wall 3.1 is a 25.6V 100Ah LiFePO4 lithium battery with 2.56kWh energy capacity and 6000+ cycle life. Its advanced BMS, 4.3” touch LCD, quick-lock wall-mounted design, and RS485/CAN communication make it suitable for residential and commercial solar storage...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Power Wall 3.1 is a 25.6V 100Ah LiFePO4 lithium battery with 2.56kWh energy capacity and 6000+ cycle life. Its advanced BMS, 4.3” touch LCD, quick-lock wall-mounted design, and RS485/CAN communication make it suitable for residential and commercial solar storage and backup systems.

Key Features

  • 2.56kWh energy capacity
  • 25.6V 100Ah LiFePO4 battery
  • Premium prismatic LiFePO4 cells
  • 6000+ cycle life
  • 10-year designed lifespan
  • Advanced BMS with multiple protection functions
  • 4.3” touch LCD for monitoring and inverter protocol selection
  • 100A maximum charging current
  • 100A maximum discharging current
  • 120A pulse discharge for 2 seconds
  • RS485 and CAN communication
  • Quick-lock wall-mounted installation
  • Up to 8 units in parallel
  • Wide operating temperature range
  • Multiple international certifications

Specifications

Specification Details
Brand KNOX
Model LIO 2.66-IP20
Battery Technology LiFePO4
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Total Energy 2560Wh / 2.56kWh
Maximum Charging Current 100A
Maximum Discharging Current 100A
Pulse Discharge Current 120A for 2 seconds
Charging Voltage Range 27.6–28.8V
End-of-Discharge Voltage 24V
Cycle Life >6000 cycles
Designed Lifespan 10 years
Communication RS485 / CAN
Battery Communication LINK-IN / LINK-OUT
Display 4.3” Touch LCD
BMS Protection OVP, LVP, OCP, OTP, LTP, Short Circuit
Mounting Wall-Mounted
Parallel Support Up to 8 units
Series Support Not Supported
Charging Temperature 0°C to +55°C
Discharging Temperature -20°C to +55°C
Humidity 0–95% RH, non-condensing
Dimensions (W × D × H) 395 × 470 × 160 mm
Weight 28 kg
Certifications IEC62619, UL1973, UL9540A, CE, ROHS, UN38.3, MSDS
