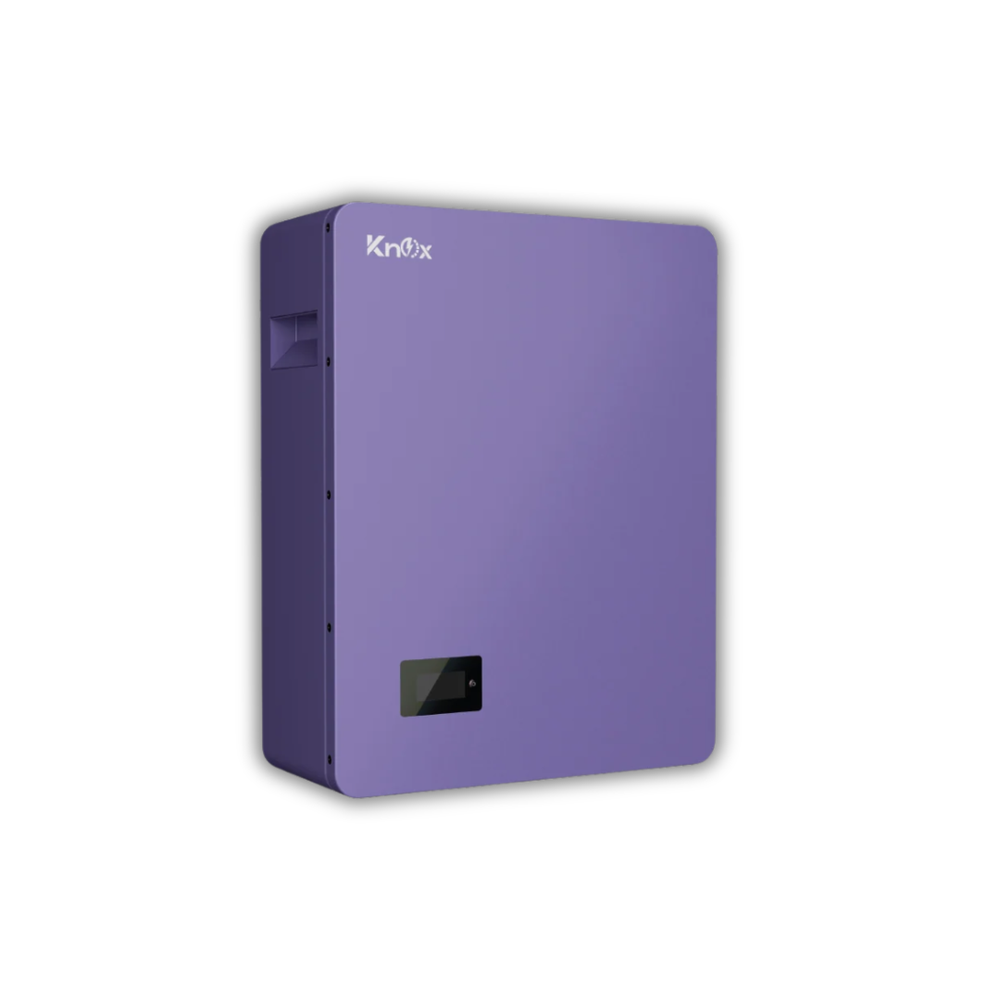

KNOX Power Wall 3.0 2.56kWh 25.6V 100Ah LiFePO4 Battery
Lithium Battery

KNOX Power Wall 3.0 2.56kWh 25.6V 100Ah LiFePO4 Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.132,000.00
Description The KNOX Power Wall 3.0 is a 25.6V 100Ah LiFePO4 lithium battery with 2.56kWh energy capacity, designed for solar storage, backup power, and off-grid applications. Featuring 6000+ cycles, built-in LCD monitoring, advanced protection, and wall-mounted installation, it provides reliable and scalable...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The KNOX Power Wall 3.0 is a 25.6V 100Ah LiFePO4 lithium battery with 2.56kWh energy capacity, designed for solar storage, backup power, and off-grid applications. Featuring 6000+ cycles, built-in LCD monitoring, advanced protection, and wall-mounted installation, it provides reliable and scalable energy storage for residential and commercial systems.

Note: Battery DC cables are not included in the box.

Key Features

  • 2.56kWh energy capacity
  • 25.6V 100Ah LiFePO4 battery
  • Brand-new A-grade prismatic LiFePO4 cells
  • 6000+ cycles at 80% DOD
  • 100A continuous discharge current
  • 120A peak discharge current
  • Built-in LCD display for real-time monitoring
  • RS485 communication
  • Wall-mounted design
  • Up to 2 units in series
  • Up to 4 units in parallel
  • IP20 protection
  • Compact and scalable energy storage solution

Specifications

Specification Details
Model LIO 2.56-IP20
Battery Type LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage 25.6V
Nominal Capacity 100Ah
Energy Capacity 2560Wh / 2.56kWh
Battery Configuration 8S1P
Continuous Discharge Current 100A
Maximum Peak Discharge Current 120A
Recommended Discharge Current 50A
Maximum Charge/Discharge Current 100A
Charge Cut-off Voltage 28.8V
Discharge Cut-off Voltage 20.8V
Recommended DOD 80%
Cycle Life >6000 cycles
Communication RS485
Display LCD Screen
Mounting Wall-Mounted
Protection Rating IP20
Terminal Type M6
Charge Temperature 0°C to +55°C
Discharge Temperature -20°C to +60°C
Storage Temperature 5°C to +35°C optimal
Humidity 40%–80% RH
Dimensions (L × W × H) 350 × 180 × 450 mm
Weight 25.1 ± 0.5 kg
Scalability Up to 2 in series / 4 in parallel
DC Cables Not Included
