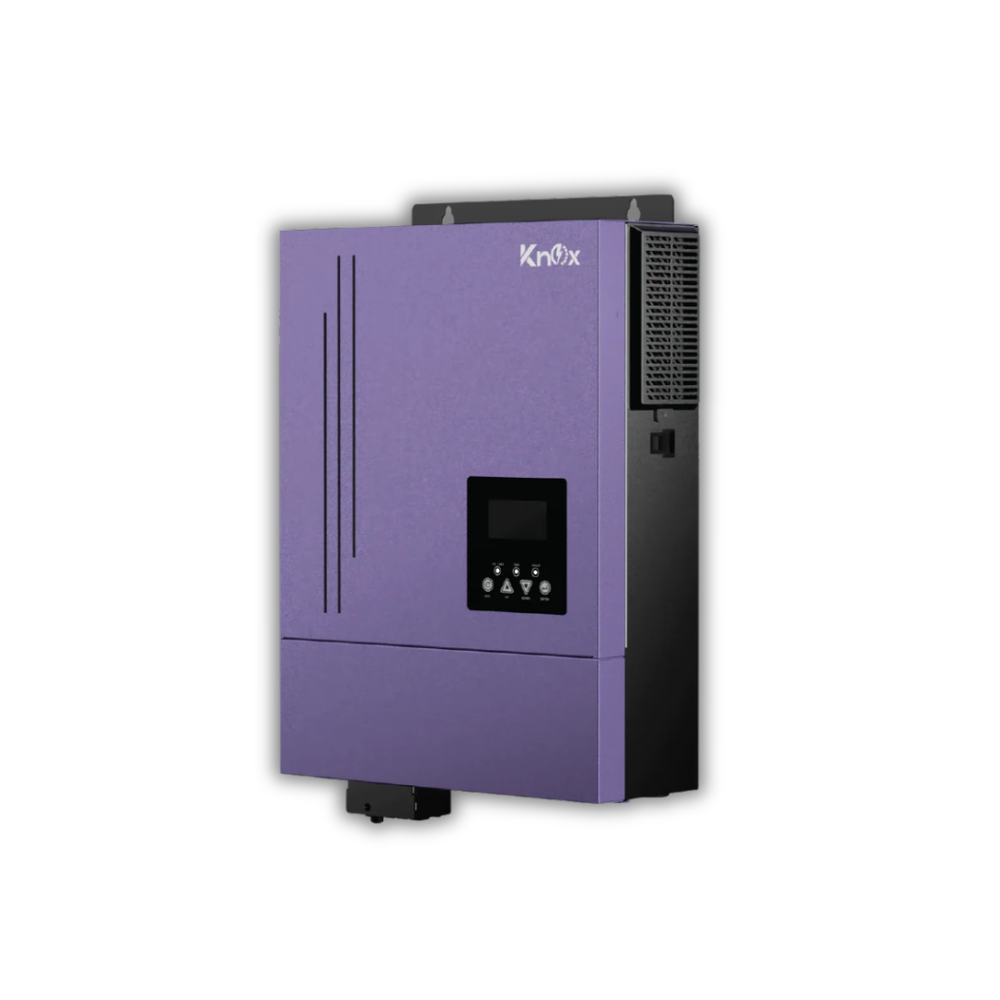

Knox Krypton Eco 5000 4.2kW Hybrid Solar Inverte
Hybrid solar inverter

Knox Krypton Eco 5000 4.2kW Hybrid Solar Inverte

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.100,000.00
Description The Knox Krypton Eco 5000 4.2kW Hybrid Solar Inverter delivers reliable solar power with 5kW rated power, 5kW PV capacity, MPPT charging, and pure sine wave output. With 24V battery support, batteryless operation, intelligent load management, and dual-output grid feeding, it...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description


The Knox Krypton Eco 5000 4.2kW Hybrid Solar Inverter delivers reliable solar power with 5kW rated power, 5kW PV capacity, MPPT charging, and pure sine wave output. With 24V battery support, batteryless operation, intelligent load management, and dual-output grid feeding, it is suitable for both on-grid and off-grid solar applications.

Key Features

  • 5kW / 5000VA rated power
  • 5kW maximum PV array power
  • 4.2kW PV + battery output power
  • 4kW battery mode power
  • Pure sine wave output
  • Battery-independent / batteryless operation
  • 24V battery system
  • MPPT solar charger
  • Up to 100A solar charging current
  • Up to 120A AC charging current
  • 8.4kVA surge power
  • Intelligent load management
  • Dual-output grid feeding
  • Built-in anti-dust kit
  • Optional Wi-Fi monitoring
  • RS232 communication interface

Specifications

Specification Details
Brand Knox
Series Krypton Eco
Model Krypton Eco 5000
Model Code 4kW-24-pV5000-TWIN
Rated Power 5000VA / 5000W
Battery Mode Power 4000W
PV + Battery Output Power 4200W
Input Voltage 230VAC
Selectable Voltage Range 184–264VAC / 195.5–253VAC
Frequency Range 50/60Hz Auto Sensing
AC Output Voltage 230VAC ±5%
Surge Power 8400VA
Peak Efficiency 93%
Transfer Time 10ms / 20ms
Output Waveform Pure Sine Wave
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection 32VDC
Solar Charger Type MPPT
Maximum PV Open Circuit Voltage 500VDC
Maximum PV Array Power 5000W
MPP Voltage Range 30–450VDC
PV Rated Current 18A
Maximum Input Current (Isc) 20A
Maximum Solar Charging Current 100A
Maximum AC Charging Current 120A
Maximum Charging Current 120A
Communication RS232, Optional Wi-Fi
Dimensions (D × W × H) 115 × 300 × 435 mm
Net Weight 9 kg
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 5–95% RH, Non-Condensing
