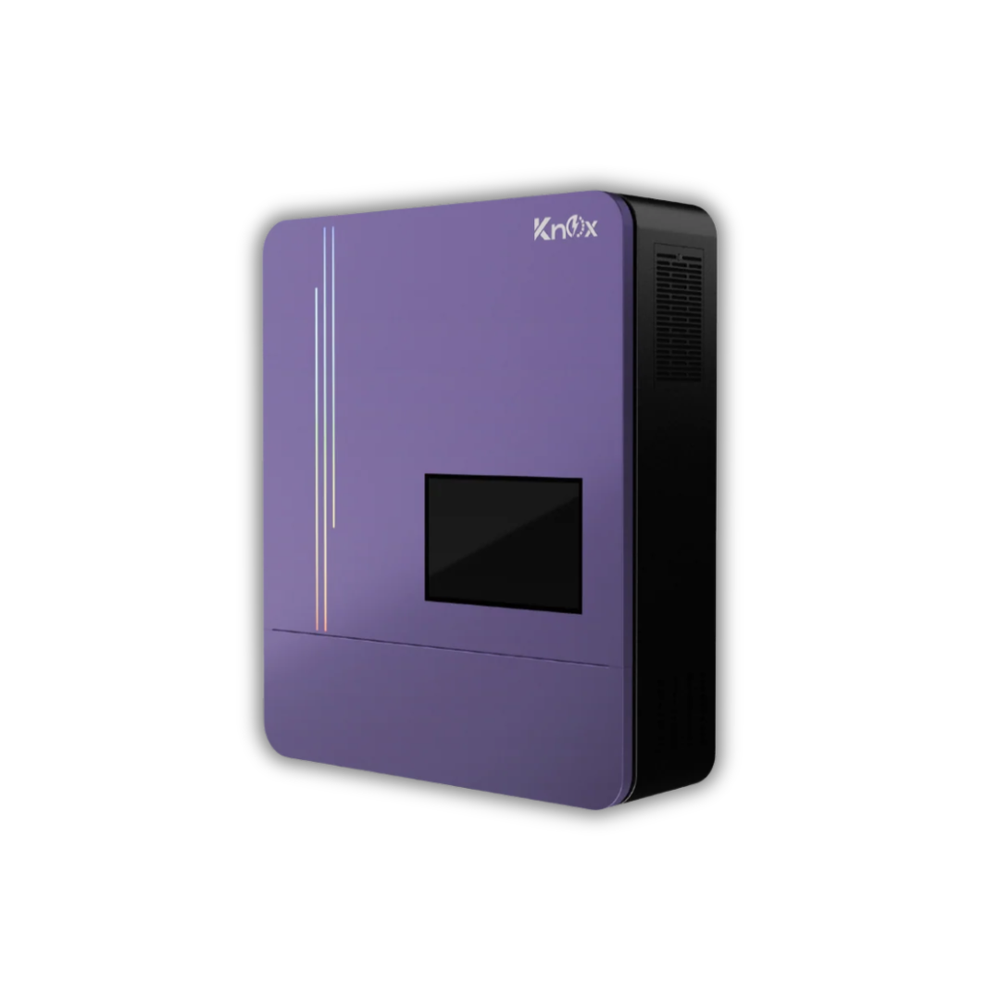

KNOX Krypton 15002 11.5kW Hybrid Solar Inverter – 48V Dual MPPT

Description

The KNOX Krypton 15002 11.5kW Hybrid Solar Inverter is designed for residential and commercial solar energy systems requiring high PV capacity, flexible energy management, and scalable system operation. With an 11.5kW rated output and support for up to 15kW of PV input, it provides efficient solar energy conversion through its dual MPPT design.

The Krypton 15002 features a 90–450V MPPT voltage range with high PV input capability, supporting up to 30A per MPPT and 45A maximum input current. Its 48V battery system supports up to 150A charging current, while the inverter can also operate with optional batteryless configurations.

For convenient monitoring and system management, the inverter includes built-in Wi-Fi, a 7-inch touchscreen HMI, USB/RS232/RS485 communication, and dry-contact support. It also provides dual AC outputs for smart load management.

The Krypton 15002 supports parallel operation of up to 6 units, allowing the system to be expanded for higher power requirements. With pure sine wave output, up to 95% maximum DC/AC conversion efficiency, and fast transfer times of 10ms for personal computers and 20ms for home appliances, it is designed for versatile hybrid solar applications.

Key Features

• 11.5kW rated output power
• Up to 15kW maximum PV input
• Dual MPPT solar tracking
• 90–450V MPPT voltage range
• 30A × 2 MPPT input, up to 45A maximum
• 48V battery system
• Up to 150A solar charging current
• Up to 150A AC charging current
• Pure sine wave output
• Up to 95% maximum DC/AC efficiency
• Built-in Wi-Fi
• 7-inch touchscreen HMI
• USB-A OTG firmware upgrade support
• Dual AC outputs for smart load management
• Battery-independent / optional batteryless operation
• Parallel operation of up to 6 units
• Surge power up to 23,000VA

Specifications
