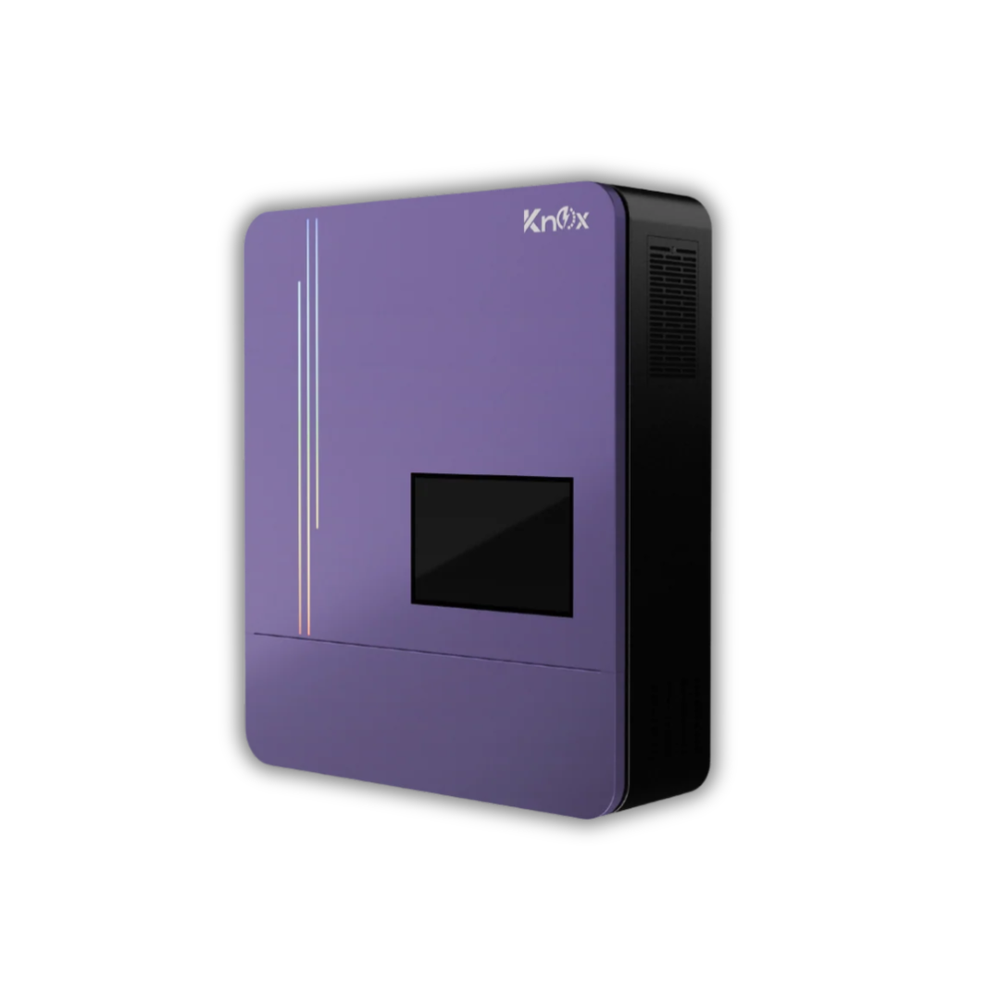

Knox Krypton 13002 10kW Hybrid Solar Inverter
Hybrid solar inverter

Knox Krypton 13002 10kW Hybrid Solar Inverter

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.295,000.00
Description The Knox Krypton 13002 10kW Hybrid Solar Inverter delivers reliable solar power with 13kW PV input capacity, dual MPPT technology, and 48V battery support. It features built-in Wi-Fi, a 7-inch touch HMI, smart dual-load management, and battery-independent operation. With 20kVA surge...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The Knox Krypton 13002 10kW Hybrid Solar Inverter delivers reliable solar power with 13kW PV input capacity, dual MPPT technology, and 48V battery support. It features built-in Wi-Fi, a 7-inch touch HMI, smart dual-load management, and battery-independent operation. With 20kVA surge power and parallel support for up to 6 units, it is suitable for residential and commercial solar systems.

Key Features

  • 10kW rated output power
  • 13kW maximum PV input
  • Dual MPPT with 30A × 2 input current
  • 48V battery system
  • Up to 150A solar and AC charging
  • 20kVA surge power
  • Built-in Wi-Fi monitoring
  • 7-inch touch HMI display
  • USB-A OTG firmware upgrade
  • Smart dual-output load management
  • Battery-independent / batteryless operation
  • Pure sine-wave output
  • Parallel operation up to 6 units
  • USB / RS232 / RS485 / Wi-Fi / Dry-contact communication

Specifications

Specification Details
Brand Knox
Series Krypton
Model Krypton 13002
Model Code 10kW-48-pV13kW-TWIN
Phase Single Phase
Rated Output Power 10,000W / 10kW
Maximum PV Input Power 13,000W / 13kW
Battery + PV Output Power 10,000W
Nominal / Maximum DC Voltage 500VDC
Start-up / Initial Feeding Voltage 120VDC / 150VDC
MPPT Voltage Range 90–450VDC
MPPT Trackers / Input Current 2 / 30A × 2, Max 45A
Nominal AC Output Voltage 220/230/240VAC
AC Output Voltage Range 170–280VAC / 90–280VAC
Nominal Output Current 45A
Power Factor >0.99
Maximum Efficiency 95%
AC Input Voltage Range 90–280VAC / 170–280VAC
Frequency 50/60Hz Auto Sensing
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
Solar Charger MPPT
Maximum Solar Charging Current 150A
Maximum AC Charging Current 150A
Maximum Charging Current 150A
Surge Power 20,000VA
Output Waveform Pure Sine Wave
DC to AC Efficiency 93%
Transfer Time 10ms / 20ms
Parallel Operation Up to 6 Units
Communication USB / RS232 / RS485 / Wi-Fi / Dry Contact
Dimensions (D × W × H) 156.1 × 460 × 551.8 mm
Net Weight 18.4 kg
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 0–90% RH, Non-Condensing
Certifications IEC 61682, IEC 62109-1, IEC 62109-2, IEC 61683, LVD 2014/35/EU
