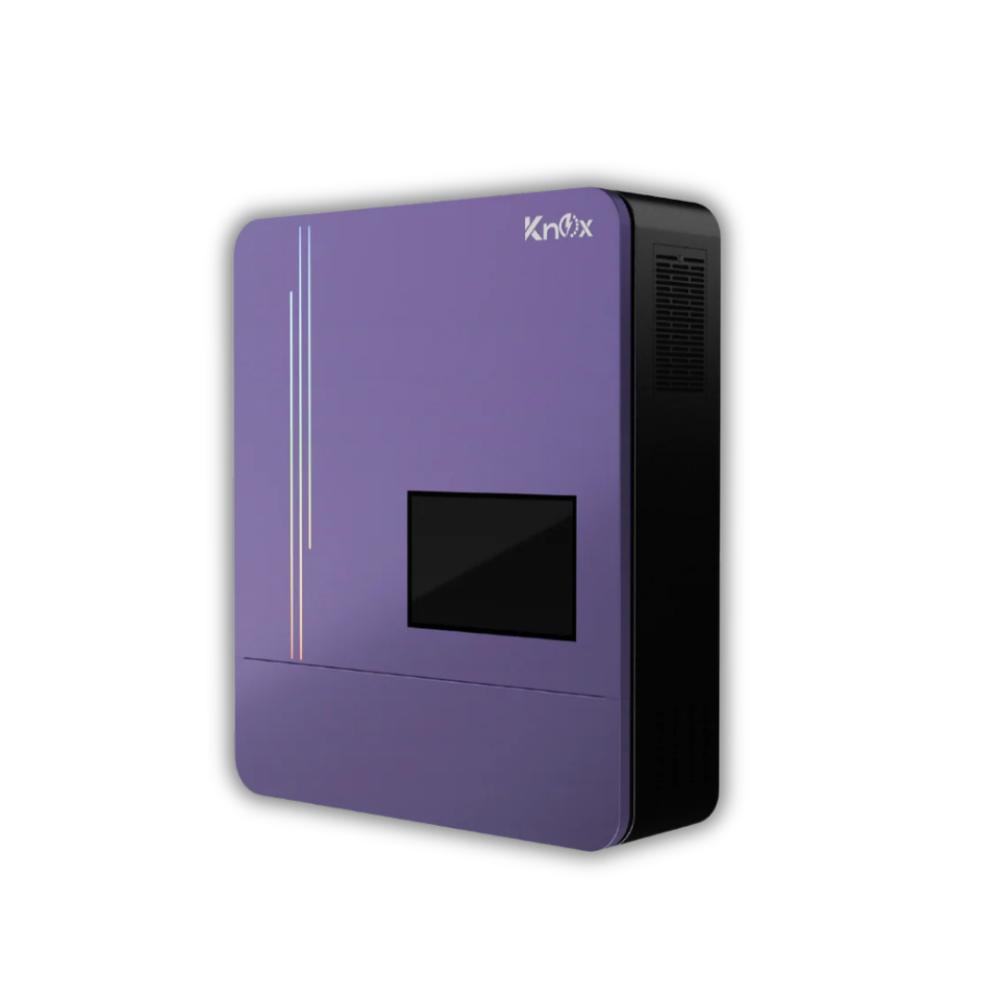

Knox Krypton 12002 8.5kW Hybrid Solar Inverter
Hybrid solar inverter

Knox Krypton 12002 8.5kW Hybrid Solar Inverter

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.265,000.00
Description The Knox Krypton 12002 8.5kW Hybrid Solar Inverter combines 8.5kW rated output, 12kW PV input capacity, and dual MPPT technology for efficient solar energy management. It supports 48V batteries, up to 150A charging, built-in Wi-Fi, a 7-inch touch HMI, and battery-independent...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The Knox Krypton 12002 8.5kW Hybrid Solar Inverter combines 8.5kW rated output, 12kW PV input capacity, and dual MPPT technology for efficient solar energy management. It supports 48V batteries, up to 150A charging, built-in Wi-Fi, a 7-inch touch HMI, and battery-independent operation. With 17kVA surge power and parallel support for up to 6 units, it is suitable for reliable residential and commercial solar systems.

Key Features

  • 8.5kW rated output power
  • 12kW maximum PV input
  • Dual MPPT with 30A × 2 input current
  • 48V battery system
  • Up to 150A solar and AC charging
  • 17kVA surge power
  • Built-in Wi-Fi monitoring
  • 7-inch touch HMI display
  • USB-A OTG firmware upgrade
  • Smart dual-output load management
  • Battery-independent / batteryless operation
  • Pure sine-wave output
  • Parallel operation up to 6 units
  • USB / RS232 / RS485 / Wi-Fi / Dry-contact communication

Specifications

Specification Details
Brand Knox
Series Krypton
Model Krypton 12002
Model Code 8.5kW-48-pV12kW-TWIN
Phase Single Phase
Rated Output Power 8,500W / 8.5kW
Maximum PV Input Power 12,000W / 12kW
Battery + PV Output Power 8,500W
Nominal / Maximum DC Voltage 500VDC
Start-up / Initial Feeding Voltage 120VDC / 150VDC
MPPT Voltage Range 90–450VDC
MPPT Trackers / Input Current 2 / 30A × 2, Max 45A
Nominal AC Output Voltage 220/230/240VAC
AC Output Voltage Range 170–280VAC / 90–280VAC
Nominal Output Current 39A
Power Factor >0.99
Maximum Efficiency 95%
AC Input Voltage Range 90–280VAC / 170–280VAC
Frequency 50/60Hz Auto Sensing
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 66VDC
Solar Charger MPPT
Maximum Solar Charging Current 150A
Maximum AC Charging Current 150A
Maximum Charging Current 150A
Surge Power 17,000VA
Output Waveform Pure Sine Wave
DC to AC Efficiency 93%
Transfer Time 10ms / 20ms
Parallel Operation Up to 6 Units
Communication USB / RS232 / RS485 / Wi-Fi / Dry Contact
Dimensions (D × W × H) 156.1 × 460 × 551.8 mm
Net Weight 18.4 kg
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Humidity 0–90% RH, Non-Condensing
Certifications IEC 61682, IEC 62109-1, IEC 62109-2, IEC 61683, LVD 2014/35/EU
