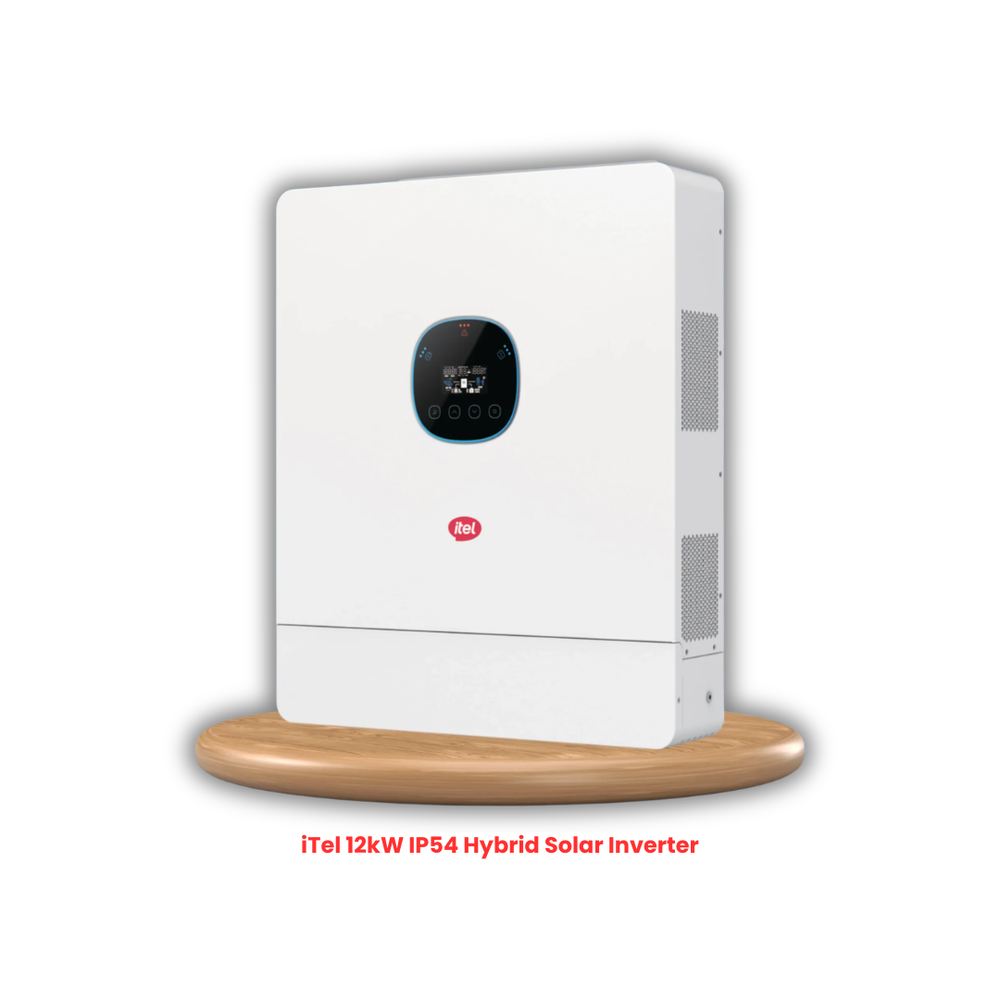

iTel 12kW | 48V Hybrid Solar Inverter | MPPT | IP54
The iTel 12kW Hybrid Solar Inverter is a powerful solution for large residential and commercial solar systems. Featuring 48V battery support, 16,000W PV input, Smart Load Management, and IP54 protection, it delivers reliable, efficient, and uninterrupted solar power.
Key Features
✅ 12kW Pure Sine Wave Hybrid Solar Inverter
✅ 12,000W Continuous Output Power
✅ 24,000W Surge Capacity (5 Seconds)
✅ Supports Up to 16,000W PV Input
✅ MPPT Efficiency ≥99.5%
✅ MPPT Voltage Range: 85V–450V
✅ Supports 48V Lithium-Ion & Lead-Acid Batteries
✅ Maximum Battery Discharge Current: 250A
✅ Smart Load Management
✅ Intelligent Fan Cooling System
✅ WiFi, RS485, CAN, RS232 & Dry Contact Communication
✅ IP54 Dust & Water Resistant Design
✅ Ideal for Large Homes & Commercial Installations
✅ 3-Year Manufacturer Warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | iTel |
| Model | 12kW IP54 Hybrid |
| Rated Output Power | 12,000W |
| Surge Power | 24,000W (5 Seconds) |
| Inverter Type | Hybrid |
| Maximum PV Input Power | 16,000W |
| MPPT Voltage Range | 85V – 450V |
| MPPT Efficiency | ≥99.5% |
| Battery Voltage | 48V DC |
| Battery Type | Lithium-Ion / Lead-Acid / User Defined |
| Maximum Battery Discharge Current | 250A |
| AC Input Voltage | 90V – 280VAC |
| AC Output Voltage | 220V / 230V / 240V (Selectable) |
| Smart Load Support | Yes |
| Cooling System | Intelligent Fan Cooling |
| Operating Temperature | -10°C to 55°C |
| Protection Rating | IP54 |
| Connectivity | WiFi / RS485 / CAN / RS232 / Dry Contact |
| Application | Residential & Commercial |
| Warranty | 3 Years |
High Power Output
Maximum PowerHigh Efficiency
Top PerformanceDurability
Built for Long-Term UseBetter Performance
Optimized OutputWhy Choose iTel 12kW | 48V?
- ✓Advanced technology & premium build quality
- ✓Higher efficiency and more power per unit
- ✓Lower degradation and longer lifespan
- ✓Excellent temperature coefficient
- ✓Trusted brand with global presence
