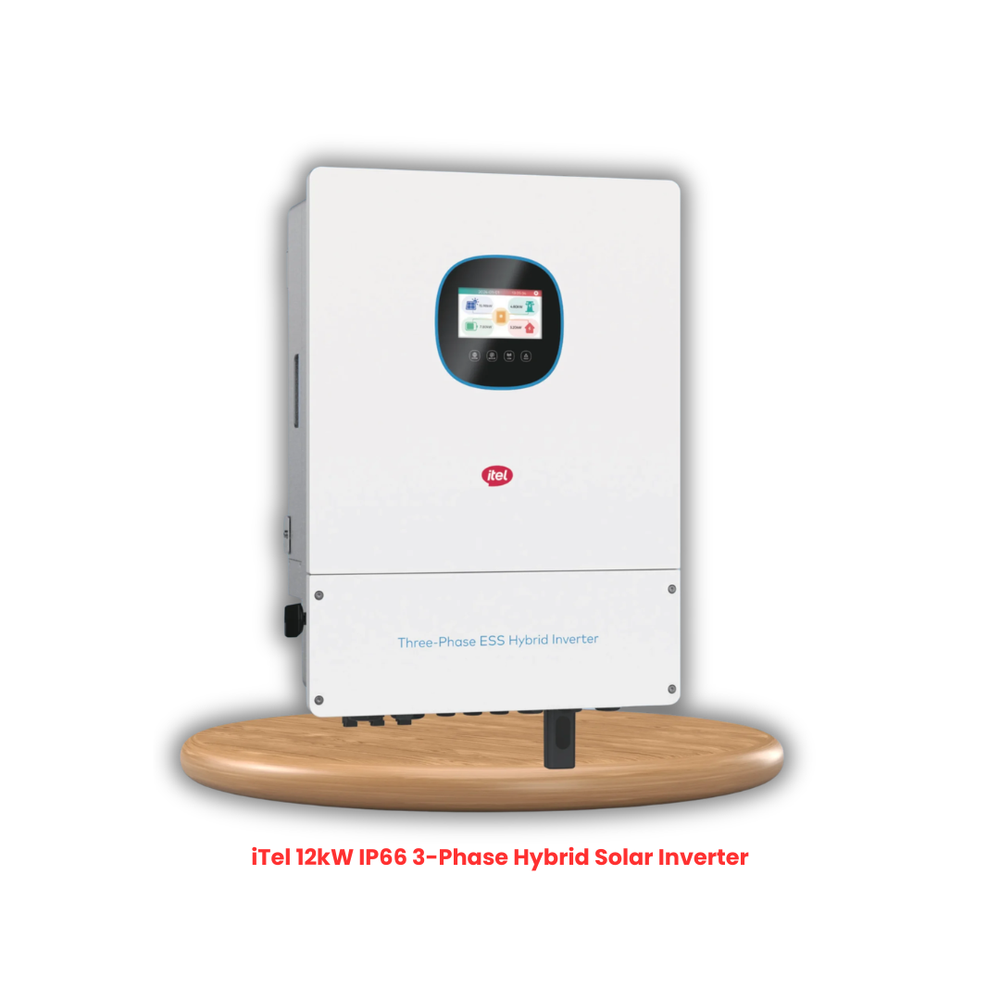

iTel 12kW | 3-Phase 48V Hybrid Solar Inverter | Dual MPPT | IP66
The iTel 12kW 3-Phase Hybrid Solar Inverter is a high-performance solution for commercial, industrial, and large residential solar systems. Featuring Dual MPPT, 48V battery support, 24,000W PV input, and IP66 protection, it delivers reliable, efficient, and uninterrupted solar power.
Key Features
✅ 12kW Three-Phase Hybrid Solar Inverter
✅ 12,000W Continuous Output Power
✅ 24,000W Surge Capacity (15 Seconds)
✅ Supports Up to 24,000W PV Input
✅ Dual Independent MPPT Technology
✅ Maximum PV Input Voltage: 1000V DC
✅ Supports 48V Lithium-Ion & Lead-Acid Batteries
✅ Maximum Battery Discharge Current: 250A
✅ Ultra-Fast 10ms Backup Switching
✅ Three-Phase Output (220/380V or 230/400V)
✅ WiFi, RS485, CAN & Dry Contact Communication
✅ IP66 Dustproof & Waterproof Design
✅ Wide Operating Temperature (-25°C to 60°C)
✅ Ideal for Commercial, Industrial & Large Residential Systems
✅ 3-Year Manufacturer Warranty
Technical Specifications
| Specification | Details |
|---|---|
| Brand | iTel |
| Model | 12kW IP66 3-Phase Hybrid |
| Rated Output Power | 12,000W |
| Surge Power | 24,000W (15 Seconds) |
| Inverter Type | Hybrid |
| Phase | Three Phase |
| Maximum PV Input Power | 24,000W |
| Maximum PV Input Voltage | 1000V DC |
| MPPT Channels | Dual MPPT |
| Input Current | 36A + 18A |
| Battery Voltage | 48V DC |
| Battery Type | Lithium-Ion / Lead-Acid / User Defined |
| Maximum Battery Discharge Current | 250A |
| Transfer Time | 10ms |
| Output Voltage | 220/380VAC or 230/400VAC |
| Frequency Range | 45Hz – 65Hz |
| Power Factor | 0.8 Leading to 0.8 Lagging |
| Operating Temperature | -25°C to 60°C |
| Maximum Operating Altitude | 4,000m |
| Protection Rating | IP66 |
| Connectivity | WiFi / RS485 / CAN / Dry Contact |
| Weight | 38 kg |
| Dimensions | 256 × 475 × 683 mm |
| Application | Commercial, Industrial & Large Residential |
| Warranty | 3 Years |
High Power Output
Maximum PowerHigh Efficiency
Top PerformanceDurability
Built for Long-Term UseBetter Performance
Optimized OutputWhy Choose iTel 12kW | 3-Phase?
- ✓Advanced technology & premium build quality
- ✓Higher efficiency and more power per unit
- ✓Lower degradation and longer lifespan
- ✓Excellent temperature coefficient
- ✓Trusted brand with global presence
| Brand | Sky Solar |
| Type | Solar inverter |
| Availability | In Stock |
