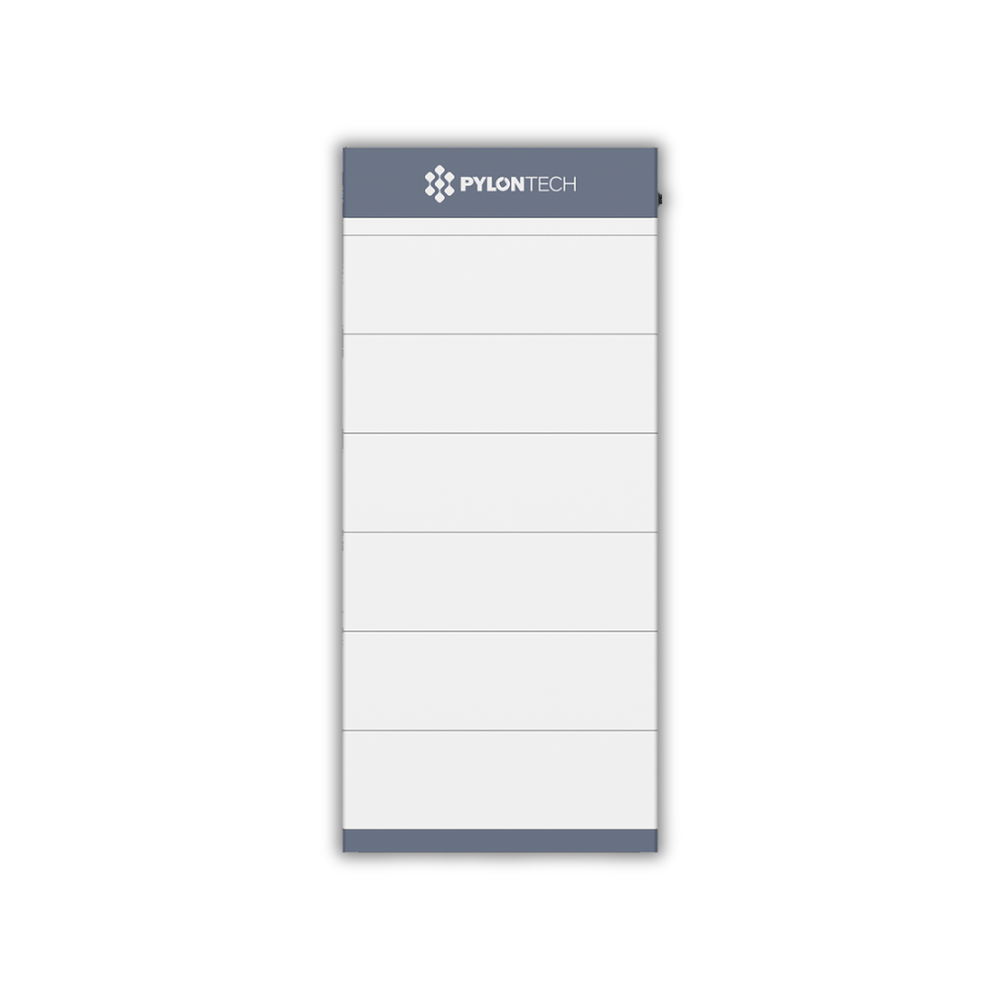

Pylontech Force H3 35.84kWh 716.8V High Voltage Lithium Battery – 7 Modules
Lithium Battery

Pylontech Force H3 35.84kWh 716.8V High Voltage Lithium Battery – 7 Modules

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.2,225,000.00
Description The Force H3 is a high-voltage energy storage system with 35.84kWh total capacity across 7 FH10050 battery modules. With 34.01kWh usable capacity, 95% DOD, IP65 protection, and 8,000+ cycles, it is designed for reliable residential and commercial energy storage. The modular...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The Force H3 is a high-voltage energy storage system with 35.84kWh total capacity across 7 FH10050 battery modules. With 34.01kWh usable capacity, 95% DOD, IP65 protection, and 8,000+ cycles, it is designed for reliable residential and commercial energy storage. The modular system supports up to 6 groups in parallel for scalable solar storage applications.
Pylontech Force H3 Modules: 7 nos with 1 BDU Included (35.84KWH Capacity)

Key Features

  • 35.84kWh total battery capacity
  • 34.01kWh usable capacity
  • 716.8V system voltage
  • 7 × FH10050 battery modules
  • 102.4V / 5.12kWh per module
  • 95% depth of discharge
  • 50A normal charge/discharge current
  • 55A maximum current for 15 minutes
  • 8,000+ cycle life
  • 15+ year design life
  • IP65 protection
  • Modbus RTU / CAN communication
  • Up to 6 groups in parallel
  • Suitable for high-voltage solar energy storage systems

Specifications

Specification Details
Brand Force
Model Force H3
Battery Modules 7 × FH10050
Module Voltage 102.4V
Module Capacity 5.12kWh
Total System Capacity 35.84kWh
Usable Capacity 34.01kWh
System Voltage 716.8VDC
Depth of Discharge 95%
Normal Charge/Discharge 50A
Maximum Current 55A @ 15 min
Dimensions (W × D × H) 540 × 350 × 1380mm
Weight 287kg
Communication Modbus RTU / CAN
Parallel Configuration Up to 6 Groups
IP Rating IP65
Charge Temperature -10°C to 55°C
Storage Temperature -20°C to 45°C
Humidity 5–95% RH, Non-Condensing
Maximum Altitude <4000m
Design Life 15+ Years @ 25°C
Cycle Life >8,000 Cycles @ 25°C
Certifications IEC62040-1 / IEC62477-1 / IEC62619 / IEC63056 / UL1973 / UL9540A / UN38.3 / VDE-AR-E 2510-50
