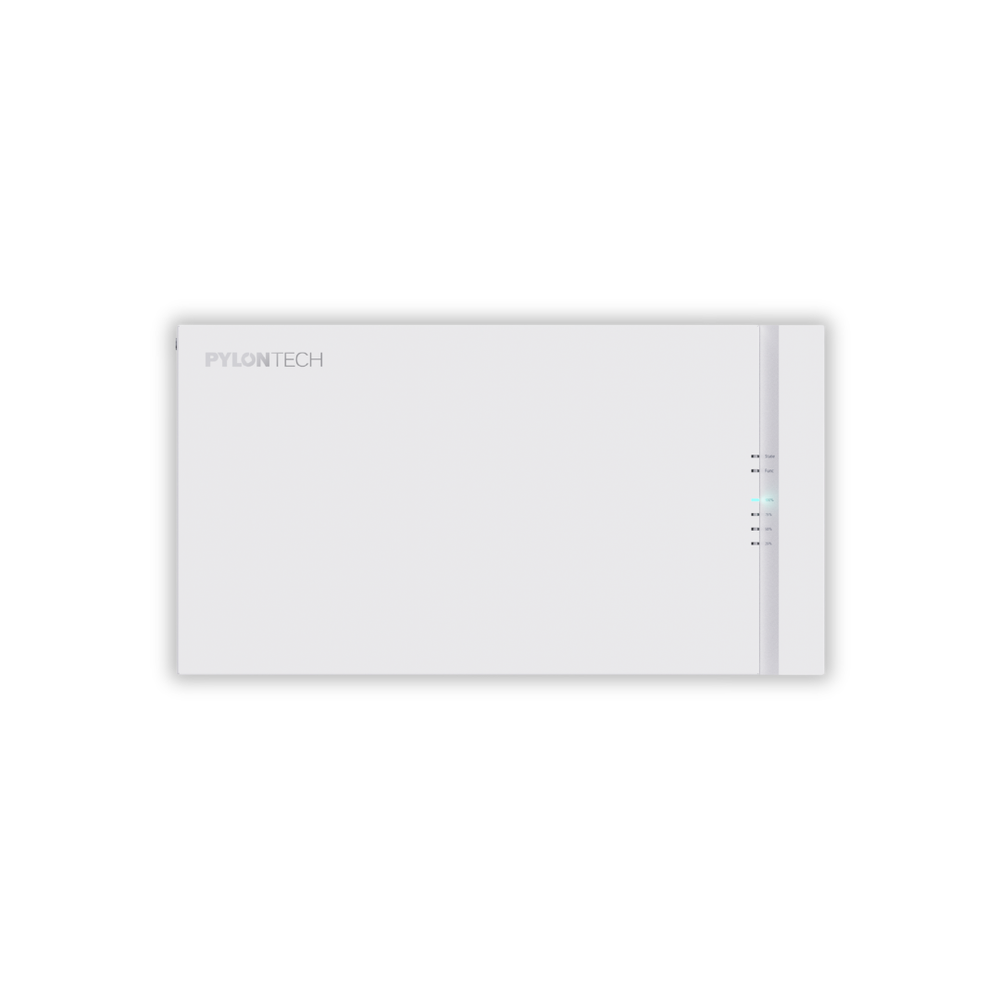

Pylontech Fidus FB-L-5.12 5.12kWh 51.2V 100Ah LiFePO₄ Lithium Battery
Lithium Battery

Pylontech Fidus FB-L-5.12 5.12kWh 51.2V 100Ah LiFePO₄ Lithium Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.248,000.00
Description The Fidus FB-L-5.12 is a 51.2V 5.12kWh lithium battery designed for residential, farm, and small commercial energy storage. With 4.97kWh usable capacity, IP65 protection, 8,000+ cycles, and C5-M anti-corrosion protection, it delivers reliable performance in demanding and humid environments. Optional Wi-Fi...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The Fidus FB-L-5.12 is a 51.2V 5.12kWh lithium battery designed for residential, farm, and small commercial energy storage. With 4.97kWh usable capacity, IP65 protection, 8,000+ cycles, and C5-M anti-corrosion protection, it delivers reliable performance in demanding and humid environments. Optional Wi-Fi and Bluetooth enable convenient remote monitoring.

Key Features

  • 5.12kWh nominal battery capacity
  • 4.97kWh usable capacity
  • 51.2V nominal voltage
  • 97% depth of discharge
  • 100A normal/max charge and discharge current
  • 121–200A peak current for 15 seconds
  • 8,000+ cycle life at 25°C
  • 10-year design life
  • IP65 protection
  • C5-M anti-corrosion protection
  • RS485 / CAN communication
  • Optional Bluetooth and Wi-Fi monitoring
  • Up to 20 batteries per battery group
  • Up to 6 maximum strings
  • Suitable for residential, farm, and small commercial applications
  • Wide operating temperature range

Specifications

Specification Details
Brand Fidus
Model FB-L-5.12
Battery Type Lithium Battery
Nominal Voltage 51.2V
Module Capacity 5.12kWh
Usable Capacity 4.97kWh
Depth of Discharge 97%
Normal Charge/Discharge 100A
Maximum Charge/Discharge 100A
Peak Current 121–200A @ 15s
Dimensions (W × D × H) 638 × 137 × 370mm
Weight 45kg
Communication RS485 / CAN
Monitoring LED / Bluetooth & Wi-Fi Optional
IP Rating IP65
Anti-Corrosion C5-M
Protective Class Class I
Maximum Strings 6
Max. Quantity per Battery Group 20
Charge Temperature -10°C to 55°C
Discharge Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Humidity 5–95% RH, Non-Condensing
Maximum Altitude ≤4000m
Design Life 10 Years @ 25°C
Cycle Life 8,000+ Cycles @ 25°C
Certifications IEC62619 / IEC63056 / VDE2510-50 / IEC62477-1 / EMC / CE
