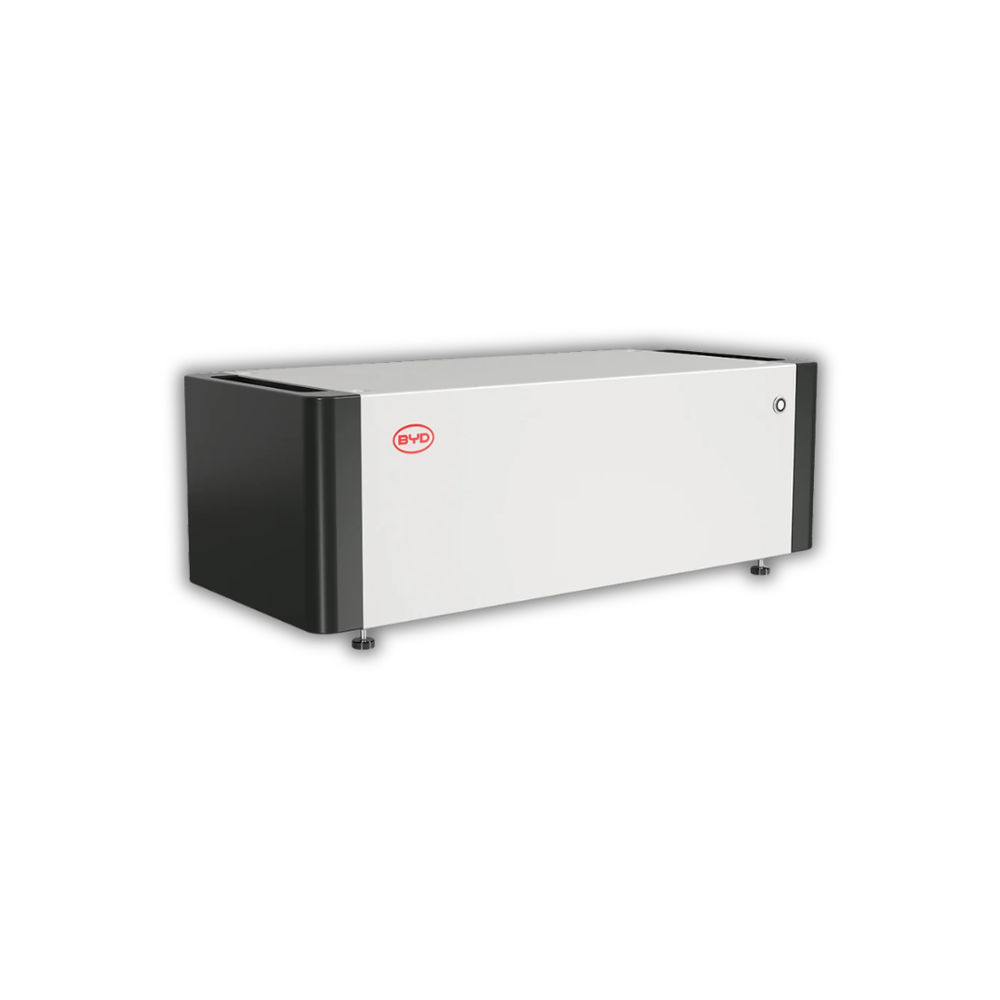

BYD Battery-Box LV5.0+ 5.12kWh 51.2V LiFePO₄ Lithium Battery
Lithium Battery

BYD Battery-Box LV5.0+ 5.12kWh 51.2V LiFePO₄ Lithium Battery

★★★★★ 5.0 (3 reviews)
Brand: Sky Solar
Rs.269,999.00
Description The BYD Battery-Box LV5.0+ is a 5.12kWh LiFePO₄ lithium battery designed for residential, commercial, and off-grid solar energy storage. With 100% DOD, 1C charge/discharge capability, 6,000 cycles, smart monitoring, and scalability up to 32 units, it provides reliable and flexible energy...
🛡️ Bank Payment & Verification View payment details, verification information & account details →
✦
7 Days Check Warranty
◷
Estimated Shipping Time: 48 to 72 Hours
⚠
You Have to Pay Partial Payment in Advance for Order Confirmation
⚠
Full Advance Payment Required for Order Processing of Batteries, Inverters, and Structures.
▣
Heavy weight parcels will be dispatched through Cargo Service Customer will pay Cargo charges on delivery.

Description

The BYD Battery-Box LV5.0+ is a 5.12kWh LiFePO₄ lithium battery designed for residential, commercial, and off-grid solar energy storage. With 100% DOD, 1C charge/discharge capability, 6,000 cycles, smart monitoring, and scalability up to 32 units, it provides reliable and flexible energy storage for backup and solar self-consumption.

Key Features

  • 5.12kWh usable energy
  • 51.2V nominal voltage
  • Advanced BYD LiFePO₄ battery cells
  • 100% Depth of Discharge (DOD)
  • 100A continuous charge/discharge current
  • 200A peak current for 10 seconds
  • 6,000 charging cycles
  • Up to 32 units in parallel
  • Maximum scalable capacity of 163.84kWh
  • CAN / RS485 communication
  • BYD Energy App monitoring and remote diagnostics
  • OTA updates and real-time battery monitoring
  • Floor-standing plug-and-play installation
  • Compatible with major inverter brands
  • 10-year warranty
  • IP20 protection

Specifications

Specification Details
Brand BYD
Model Battery-Box LV5.0+
Battery Chemistry LiFePO₄
Usable Energy 5.12kWh
Nominal Voltage 51.2V
Operating Voltage 40–58.4V
Charge Cut-Off Voltage 58.4V
Discharge Cut-Off Voltage 40V
Max Charge/Discharge Current 100A
Peak Current 200A for 10 seconds
Depth of Discharge 100%
Cycle Life 6,000 Cycles
Dimensions (H × W × D) 195 × 625 × 285mm
Weight 45kg
Installation Floor-Standing
Scalability Up to 32 Units
Maximum Capacity 163.84kWh
Communication CAN / RS485
Operating Temperature – Charge 0°C to 55°C
Operating Temperature – Discharge -20°C to 55°C
IP Rating IP20
Humidity 5%–95%
Maximum Altitude <4000m
Warranty 10 Years
Certifications CE / IEC 62619 / UN38.3
Applications On-Grid, On-Grid + Backup, Off-Grid
Optional Accessories BYD Smart WiFi / LAN Module
