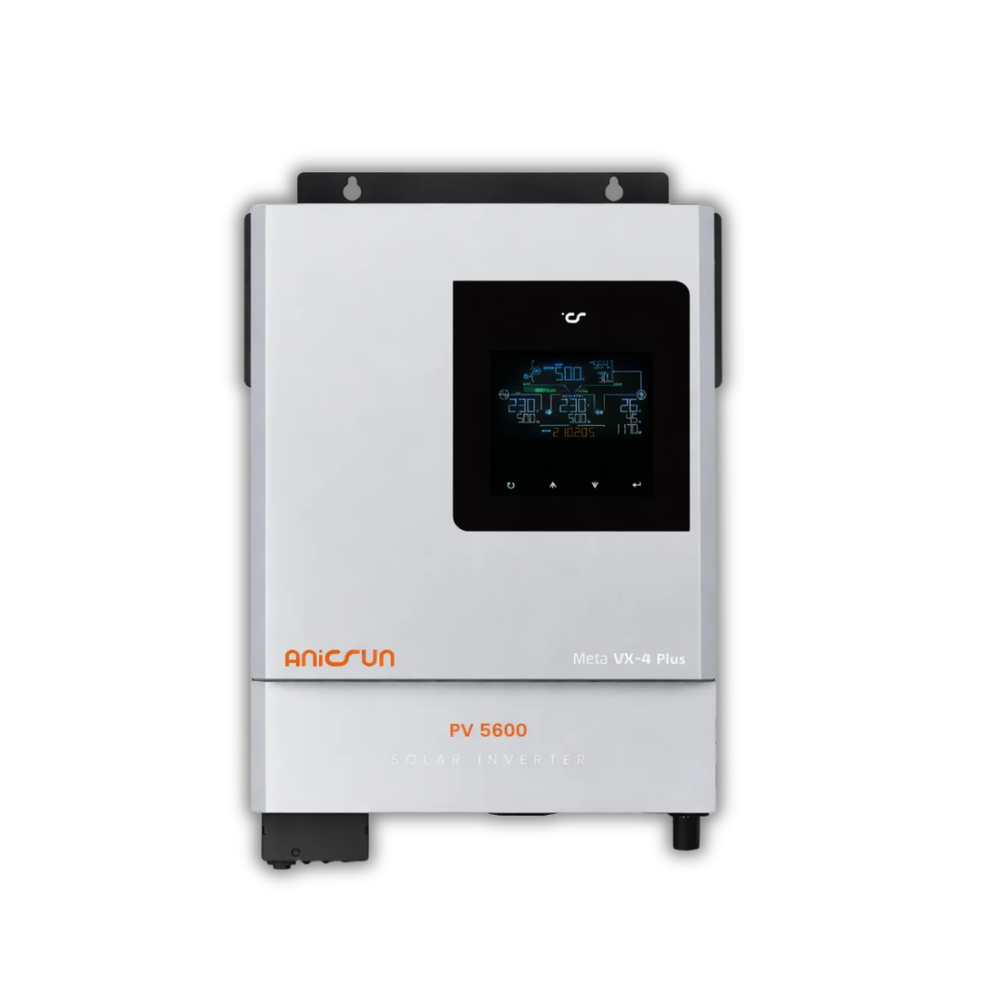

Anicsun Meta VX 4 Plus 4kW Hybrid Solar Inverter – 24V MPPT

Description

The Anicsun Meta VX 4 Plus 4kW Hybrid Solar Inverter is a pure sine wave inverter designed for residential and small commercial solar energy systems. With a 4000W / 4000VA rated output and 8000VA surge capacity, it provides reliable power conversion for solar, battery backup, and AC loads.

The inverter features an integrated MPPT solar charger supporting up to 5600W of PV input, with a maximum PV open-circuit voltage of 500VDC and an MPPT operating range of 60–450VDC. Its 24V battery system makes it suitable for compatible 24V lithium-ion and lead-acid battery configurations.

The Meta VX 4 Plus supports a wide AC input voltage range and automatically detects 50Hz/60Hz frequency. With 10ms transfer time for PCs and 20ms for appliances, it is designed to provide fast switching between power sources.

Built-in Wi-Fi connectivity, USB, RS-232, RS-485, and dry-contact communication provide convenient monitoring and system integration.

Key Features

• 4000W / 4000VA rated output
• 8000VA surge power
• Pure sine wave output
• 24VDC battery system
• Built-in MPPT solar charger
• Supports up to 5600W PV array
• 500VDC maximum PV open-circuit voltage
• 60–450V MPPT voltage range
• Up to 120A solar/AC charging capability
• Wi-Fi connectivity
• USB, RS-232 and RS-485 communication
• Dry-contact support
• Fast transfer time
• Suitable for residential and backup solar applications
